SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

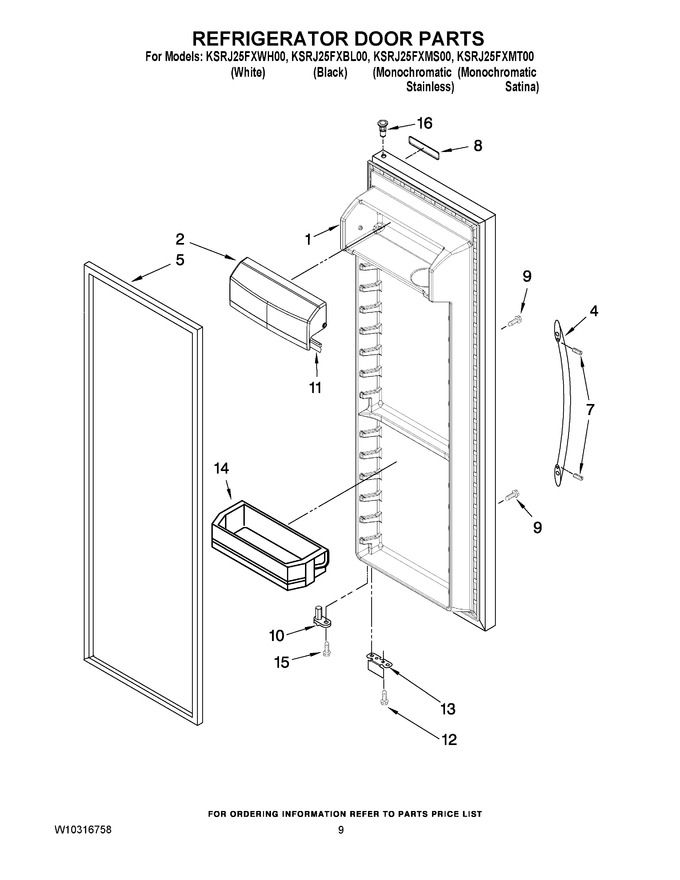

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10297357		Refrigerator Door (includes No.7) (black)		Appelez-nous	-
1	W10297361		Refrigerator Door (includes No.7) (mono Stainless)		Appelez-nous	-
1	W10297378		Refrigerator Door (includes No.7) (mono Satina)		Appelez-nous	-
1	W10297353		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
2	2301486		Door, Compartment		Appelez-nous	-
4	2319727S		Handle (stainless Steel)				$ 133.96
4	2319727W		Handle (white)				$ 106.80
4	2319727B		Handle (black)				$ 109.87
5	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
5	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
7	WPW10010150		Set Screw (black)   (Replaces: W10010150)				$ 7.88
7	W11366418		Set Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
8	WPW10243393		Nameplate (white)   (Replaces: W10046670)				$ 66.65
8	WPW10243392		Nameplate (black)   (Replaces: W10046640)				$ 70.19
8	W10046610		Nameplate (gray)				$ 33.40
9	WPW10170540		Stud/screw   (Replaces: W10170540)			Immediately	$ 8.51
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	2159124		Gasket		Appelez-nous	-
12	WPW10142233		Screw   (Replaces: W10142233)				$ 8.39
13	W10175741		Bracket, Door Stop (black)		Appelez-nous	-
13	W10175740		Bracket, Door Stop (chrome)		Appelez-nous	-
14	WP2223434K		Door Bin (4)   (Replaces: 2223434)			Immediately	$ 97.22
15	WP3400012		Screw   (Replaces: W10142285)				$ 7.82
16	WP2182181		Thimble-top   (Replaces: 2200087)				$ 7.76
