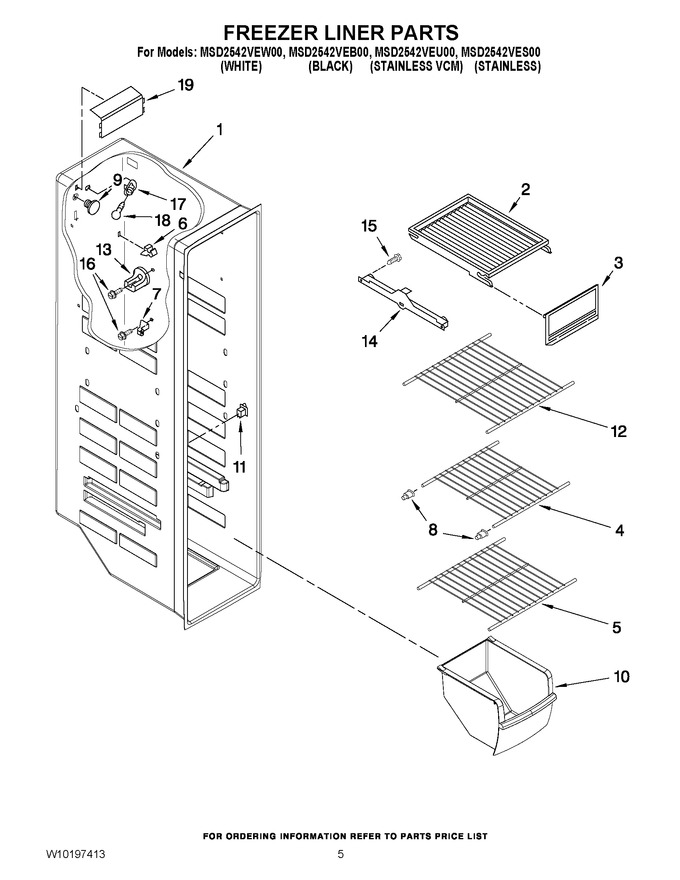

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	2171714		Shelf, Top Compartment		Appelez-nous	-
3	WP2171713		Door, Ice Compartment   (Replaces: 2171713)				$ 87.27
4	W10318946		Shelf, Wire				$ 37.05
5	WPW10318947		Shelf, Wire   (Replaces: W10318947)				$ 87.44
6	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 10.42
7	2196206		Support, Stud		Appelez-nous	-
8	WPW10130299		Cup, Shelf Mounting   (Replaces: W10130299)			Immediately	$ 14.00
9	940014		Hole Plug				$ 18.33
10	W11577967		Freezer Bin   (Replaces: 2309757)				$ 91.71
11	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
12	WPW10318948		Shelf, Wire   (Replaces: W10318948)				$ 147.84
13	2196206		Stud, Rear		Appelez-nous	-
14	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
14	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
15	718257		Screw (4)   (Replaces: 489100)		Appelez-nous	-
16	W10142289		Screw   (Replaces: 3400893)				$ 9.15
17	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 110.16
18	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
19	2171705		Light Lens				$ 94.68

    View Diagram in Separate Window       Print Part List
