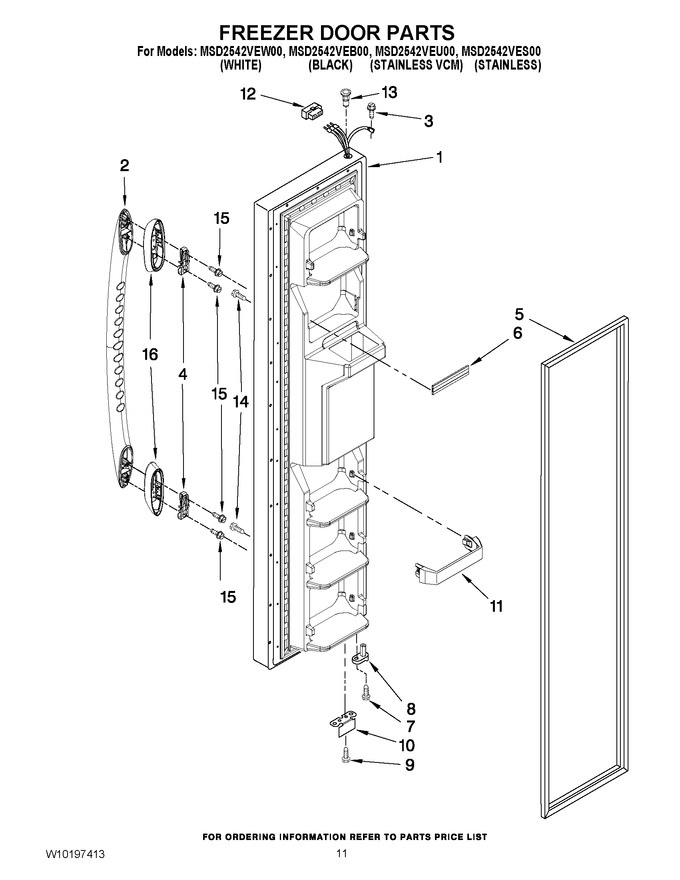

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10153844		Freezer Door Includes Item No.5 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10159876		Freezer Door Includes Item No.5 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10170562		Freezer Door Includes Item No.5 And Dispenser Front Parts) (stainless Vcm)		Appelez-nous	-
1	W10170570		Freezer Door Includes Item No.5 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	WP12743701W		Handle (white)   (Replaces: 12743701W)				$ 180.34
2	WP12743701B		Handle (black)   (Replaces: 12743701B)				$ 190.87
3	WP489128		Screw   (Replaces: 488500)				$ 11.40
4	13067101		Clip				$ 5.65
5	2159082		Door Gasket, Magnetic (black)   (Replaces: 2309533)				$ 332.49
5	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309532)				$ 325.70
6	WPW10307490		Trim, Door Shelf   (Replaces: W10307490)			Immediately	$ 24.27
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
9	WP489483		Screw   (Replaces: 489420)				$ 11.41
10	W10185566		Bracket, Door Stop (white)		Appelez-nous	-
10	W10185567		Bracket, Door Stop (black)		Appelez-nous	-
11	WP2309718		Trim, Door Shelf (4)   (Replaces: 2309718)				$ 61.49
12	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
13	WP2182181		Thimble-top   (Replaces: 2182181)				$ 8.15
14	WPW10288153		Stud, Handle   (Replaces: 2326016)			Immediately	$ 9.65
15	12990203		Screw		Appelez-nous	-
16	12834803B		End Cap (black)				$ 59.63
16	12834803W		End Cap (white)		Appelez-nous	-
