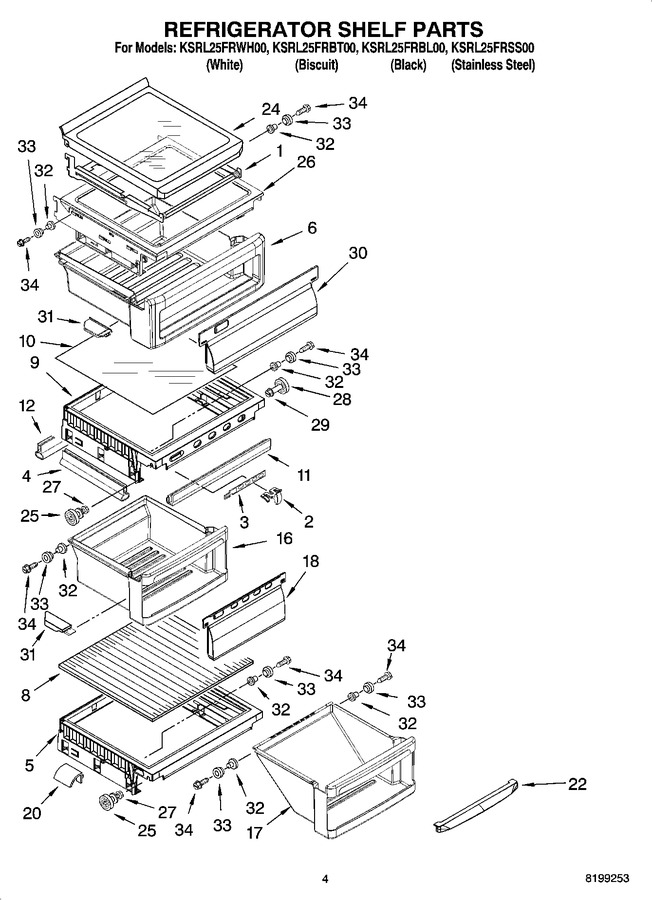

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2195975		Frame Assembly, Slide Out (2)				$ 84.01
2	2301025		Knob, Humidity				$ 74.39
3	2301026		Slide, Humidity		Appelez-nous	-
4	2301117		Gasket, Side (2)				$ 143.37
5	2301033		Cover, Meat Pan (includes Items 32, 33 & 34)				$ 52.51
6	2301120		Snack Pan (includes 30, 31, 32, 33, & 34)		Appelez-nous	-
8	2301028		Glass, Cover				$ 85.17
9	2301032		Cover, Crisper (includes 2, 3, 4, 11, 12, 32, 33 & 34)		Appelez-nous	-
10	2301027		Glass, Cover		Appelez-nous	-
11	WP1125528		Gasket, Front   (Replaces: 2301116)				$ 153.99
12	2301115		Gasket, Rear		Appelez-nous	-
16	2301118		Crisper Pan (includes 18, 31, 32, 33 & 34)		Appelez-nous	-
17	2301119		Meat Pan (includes 22, 32, 33 & 34)		Appelez-nous	-
18	2301001		Window, Crisper				$ 75.59
20	2301126		Deflector		Appelez-nous	-
22	2301227		Window, Meat Pan		Appelez-nous	-
24	2308325		Shelf, Slide Out (2)		Appelez-nous	-
25	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.07
26	2301034		Shelf, Snack Pan		Appelez-nous	-
27	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.05
28	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
29	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
30	2301006		Window, Snack Pan				$ 135.77
31	2301016		Cap, Pan (right Side)		Appelez-nous	-
31	2301017		Cap, Pan (left Side)		Appelez-nous	-
32	2301153		Eyelet, Roller		Appelez-nous	-
33	2301152		Roller		Appelez-nous	-
34	8533983		Screw		Appelez-nous	-
