01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts

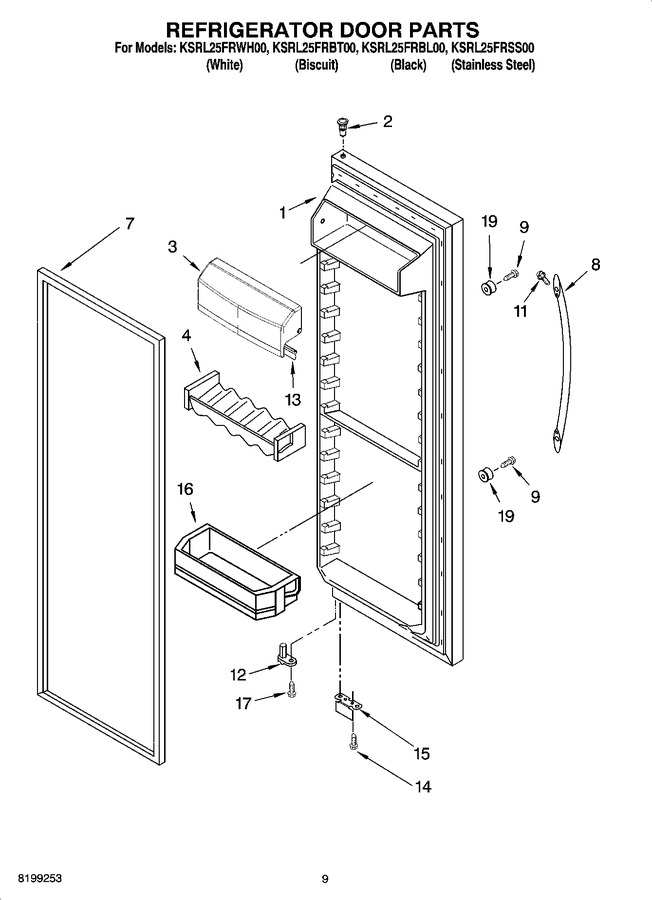

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2301089T		Refrigerator Door (includes 7) (biscuit)		Appelez-nous	-
1	2301089B		Refrigerator Door (includes 7) (black)		Appelez-nous	-
1	2301089S		Refrigerator Door (includes 7) (stainless Steel)		Appelez-nous	-
1	2301089W		Refrigerator Door (includes 7) (white)		Appelez-nous	-
2	WP2182181		Thimble, Top (for White, Biscuit, And Black Models)   (Replaces: 2308091)				$ 8.15
2	2308050		Thimble, Top (for Stainless Steel Models Only)		Appelez-nous	-
3	2301486		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
7	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 333.00
7	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
8	2255516W		Handle (white)		Appelez-nous	-
8	2255516T		Handle (biscuit)		Appelez-nous	-
8	2255516B		Handle (black)		Appelez-nous	-
9	WP488163		Screw   (Replaces: 488208)				$ 7.92
11	8533976		Screw				$ 8.35
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	2159124		Gasket		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 11.41
15	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629B)				$ 42.79
15	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629)				$ 42.79
16	2205821		Shelf Bin (4)		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
19	WPW10170540		Stud   (Replaces: 2219698)			Immediately	$ 8.51
