SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts

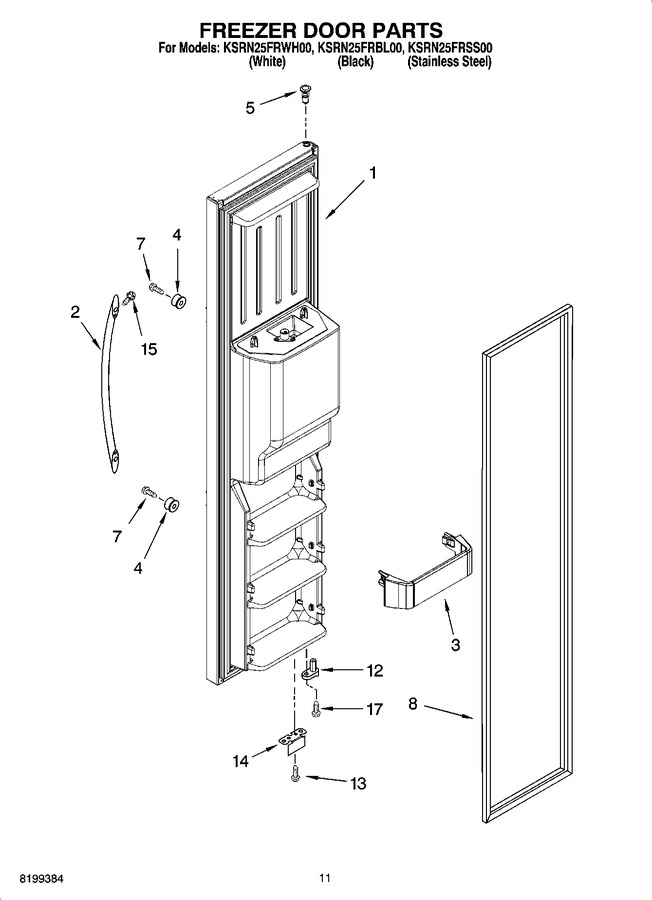

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2313308B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2303519S		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2313308W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2255516B		Handle (black)		Appelez-nous	-
2	2255516W		Handle (white)		Appelez-nous	-
2	2255516S		Handle (stainless Steel)		Appelez-nous	-
3	2223559K		Trivet (3)		Appelez-nous	-
4	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
5	2308050		Thimble, Top (for Stainless Steel Model Only)		Appelez-nous	-
5	WP2182181		Thimble, Top (for White & Black Models Only)   (Replaces: 2308091)				$ 8.15
7	WP488163		Screw   (Replaces: 488208)				$ 7.92
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
12	WP2223752		Door Closer, Upper Cam   (Replaces: 2223752)				$ 21.16
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2303113B		Bracket, Door Stop (black)		Appelez-nous	-
14	2303113		Bracket, Door Stop (chrome)		Appelez-nous	-
15	8533976		Screw (chrome)				$ 8.35
15	8533975		Screw (black)		Appelez-nous	-
17	2305405		Tube, Door		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
17	N/A		Following Parts Not Illustrated		Appelez-nous	-
17	2310084		Wire Harness, Freezer Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
