Diagram for 10 - Control Parts
10 - Control Parts

Diagram for 11 - Unit Parts
11 - Unit Parts

Diagram for 12 - Icemaker Parts, Optional Parts
12 - Icemaker Parts, Optional Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2212005 Control Box Appelez-nous -
2 WP2149705 Switch   (Replaces: 2219875) In-Stock Immediately $ 40.40

3 WP3196557 Screw (4)   (Replaces: 3196537) In-Stock Immediately $ 7.95

4 2216879 Cover, Control Box Appelez-nous -
6 2304006 Electronic Control Appelez-nous -
7 WP67006908 Screw (4)   (Replaces: 8281244) In-Stock Immediately $ 8.78

8 940014 Hole Plug Special Order $ 18.33

9 WP1115374 Clip, Wiring   (Replaces: 1115374) Special Order $ 8.14

17 4387478 Light Socket   (Replaces: 2162085) In-Stock Immediately $ 115.67

19 W11679940 Light Bulb   (Replaces: 2255743) In-Stock Immediately $ 11.30

20 2216115 Control Box Harness Appelez-nous -
25 2313361 Overlay, Control Box Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

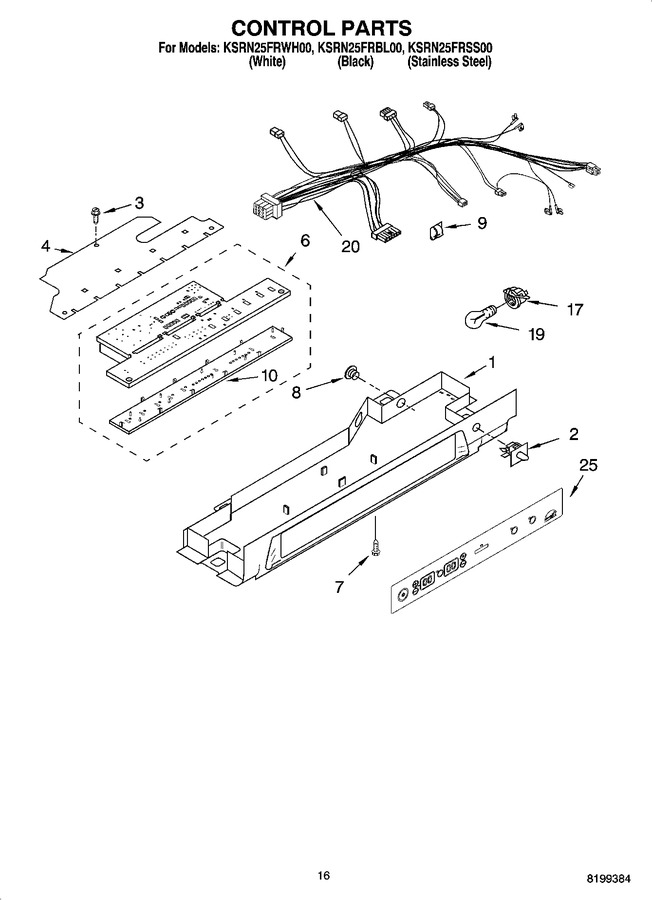

Diagram for KSRN25FRBL00
