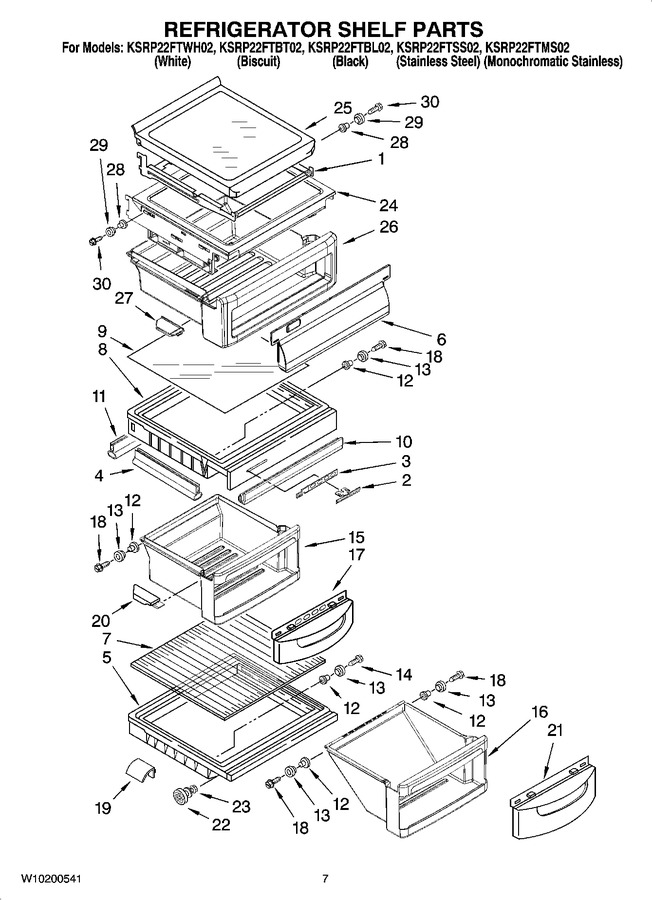

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2195975		Frame Assembly, Slide-out				$ 84.01
2	2174253		Button, Humidity		Appelez-nous	-
3	2174252		Slide, Humidity				$ 15.93
4	2174273		Gasket, Side (2)				$ 41.53
5	WP2223357		Cover, Meat Pan (includes 12, 13, 14 & 19)   (Replaces: 2223357)				$ 272.45
6	2301006		Window, Snack Pan				$ 135.77
7	2255144		Glass, Cover				$ 88.78
8	2301484		Cover, Crisper (includes 2, 3, 4, 10, 11, 12, 13 & 18)		Appelez-nous	-
9	W10141753		Glass, Cover		Appelez-nous	-
10	WP1125528		Gasket, (front)   (Replaces: 2223361)				$ 161.69
11	2223362		Gasket, (rear)		Appelez-nous	-
12	2174478		Eyelet, Roller				$ 5.70
13	2188212		Roller		Appelez-nous	-
14	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 11.36
15	2301481		Crisper Pan (includes 12, 13 17, 18 & 20)				$ 80.12
16	2301482		Meat Pan (includes 12, 13, 18 & 21)				$ 97.83
17	2174076		Window, Crisper				$ 80.62
18	WP489261		Screw   (Replaces: 489261)				$ 8.33
19	2176095		Deflector				$ 91.67
20	2223285		Cap, Crisper Pan (left Side)				$ 22.34
20	2223286		Cap, Crisper Pan (right Side)				$ 20.18
21	WP2174362		Window, Meat Pan   (Replaces: 2174362)				$ 179.76
22	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.77
23	WP3-24004-109		Screw   (Replaces: 3400894)				$ 9.14
24	2301034		Shelf Assembly		Appelez-nous	-
25	2216102		Shelf, Slide-out Assembly		Appelez-nous	-
26	2301120		Snack Bin (includes 6 & 27)		Appelez-nous	-
27	2301016		Cap, Snack Pan (right Side)		Appelez-nous	-
27	2301017		Cap, Snack Pan (left Side)		Appelez-nous	-
28	2301153		Eyelet		Appelez-nous	-
29	2301152		Roller		Appelez-nous	-
30	8533983		Screw		Appelez-nous	-
