Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2327703W Freezer Door (includes Item 7 And Dispenser Front Parts) (white) Appelez-nous -
1 2327703T Freezer Door (includes Item 7 And Dispenser Front Parts) (biscuit) Appelez-nous -
1 2327703B Freezer Door (includes Item 7 And Dispenser Front Parts) (black) Appelez-nous -
1 2327705SB Freezer Door (includes Item 7 And Dispenser Front Parts) (stainless Steel) Appelez-nous -
1 2327705SAP Freezer Door (includes Item 7 And Dispenser Front Parts) (monochromatic Stainless) Appelez-nous -
2 2319727W Handle (includes 3) (white) Special Order $ 106.80

2 2319727T Handle (includes 3) (biscuit) Appelez-nous -
2 2319727B Handle (includes 3) (black) Special Order $ 109.87

2 2319727S Handle (includes 3) (stainless Steel) Special Order $ 133.96

3 WPW10010150 Screw (black)   (Replaces: W10010150) Special Order $ 8.57

3 W11366418 Screw (chrome)   (Replaces: W10010140) In-Stock Immediately $ 15.79

4 WP488163 Screw   (Replaces: 488208) Special Order $ 7.92

5 2171071K Trivet, Shelf (3) Appelez-nous -
6 WP2182181 Thimble, Top (for White, Black Biscuit, And Monochromatic Stainless Models)   (Replaces: 2182181) Special Order $ 8.15

6 2301049 Thimble, Top (for Stainless Steel Models) Special Order $ 75.42

7 2159072 Door Gasket, Magnetic (mist Beige)   (Replaces: 2221301) Special Order $ 323.60

7 W10136733 Door Gasket, Magnetic (grey)   (Replaces: 2326337) Special Order $ 358.98

7 2159080 Door Gasket, Magnetic (black)   (Replaces: 2221312) Special Order $ 325.91

8 WPW10307490 Trim, Door Shelf   (Replaces: 2212375) In-Stock Immediately $ 24.27

9 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

10 WPW10170540 Stud   (Replaces: 2219698) In-Stock Immediately $ 8.51

11 WP2182179 Door Closer, Upper Cam   (Replaces: 2182179) In-Stock Immediately $ 6.39

12 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

13 WP2206629B Bracket, Door Stop (black)   (Replaces: 2206629B) Special Order $ 42.79

13 WP2206629B Bracket, Door Stop (chrome)   (Replaces: 2206629) Special Order $ 42.79

14 1128252 Connector Appelez-nous -

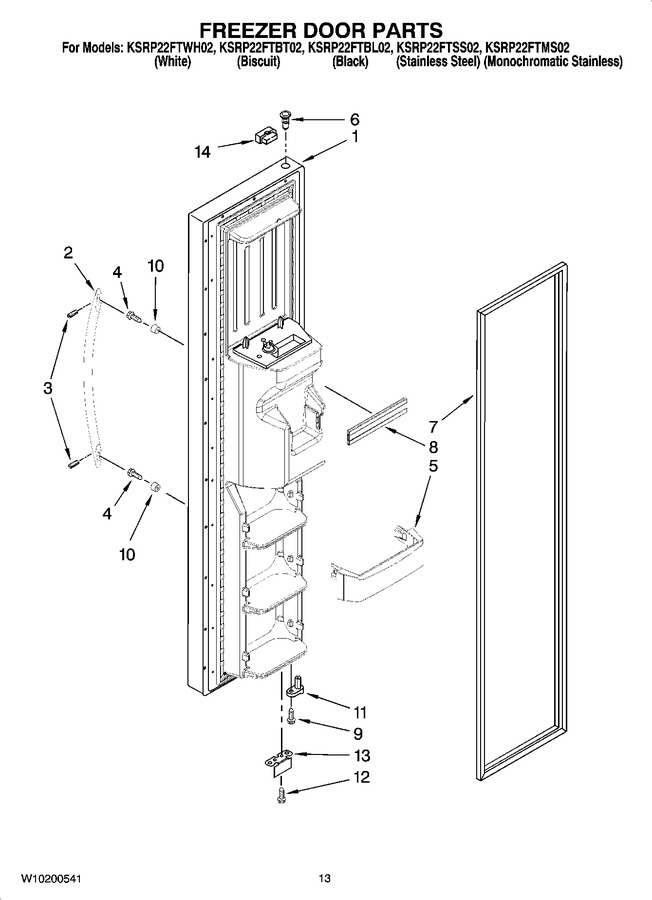

    View Diagram in Separate Window     Print Icon   Print Part List
