SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Refrigerator Door


05 - Freezer Door


06 - Freezer Liner


07 - Air Flow


08 - Unit


09 - Control, Lit/optional

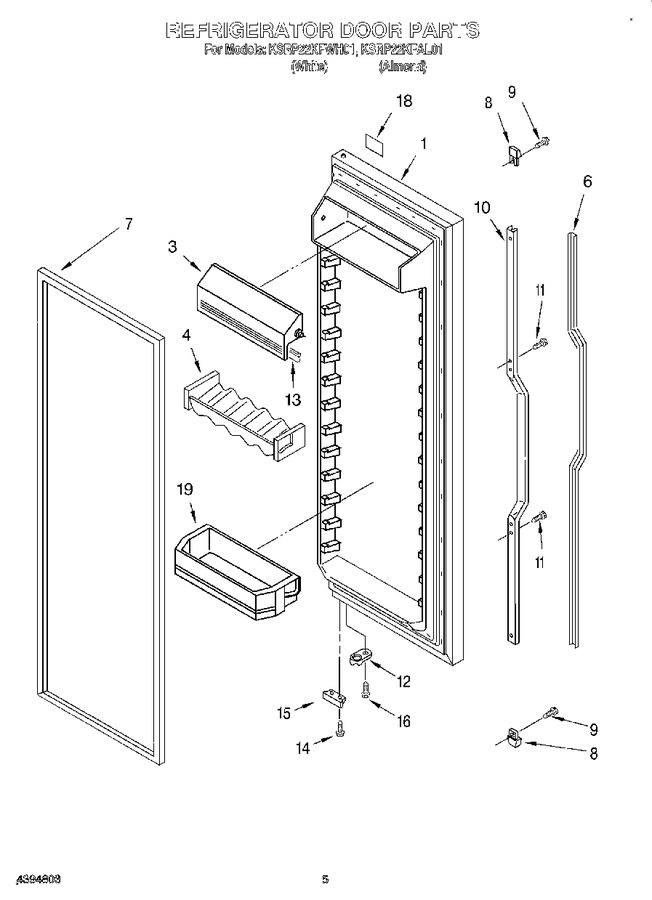

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194200W		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	2194200N		Refrigerator Door (includes No.7) (almond)		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
6	2173831		Insert, Handle (almond)		Appelez-nous	-
6	2173830		Insert, Handle (white)		Appelez-nous	-
7	2159073		Door Gasket, Magnetic (service)				$ 333.19
8	2194778N		End Cap, Handle (almond)		Appelez-nous	-
8	2194778W		End Cap, Handle (white)		Appelez-nous	-
9	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
10	2194776W		Retainer, Handle (white)		Appelez-nous	-
10	2194776N		Retainer, Handle (almond)		Appelez-nous	-
11	WP489463		Screw   (Replaces: 489463)				$ 8.25
12	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
13	2159124		Gasket, Door Compartment		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 11.41
15	2195950		Bracket, Door Stop				$ 5.84
16	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
18	2168991		Nameplate (almond Model)		Appelez-nous	-
18	2168800		Nameplate (white Model)		Appelez-nous	-
19	2171063		Shelf Bin (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
