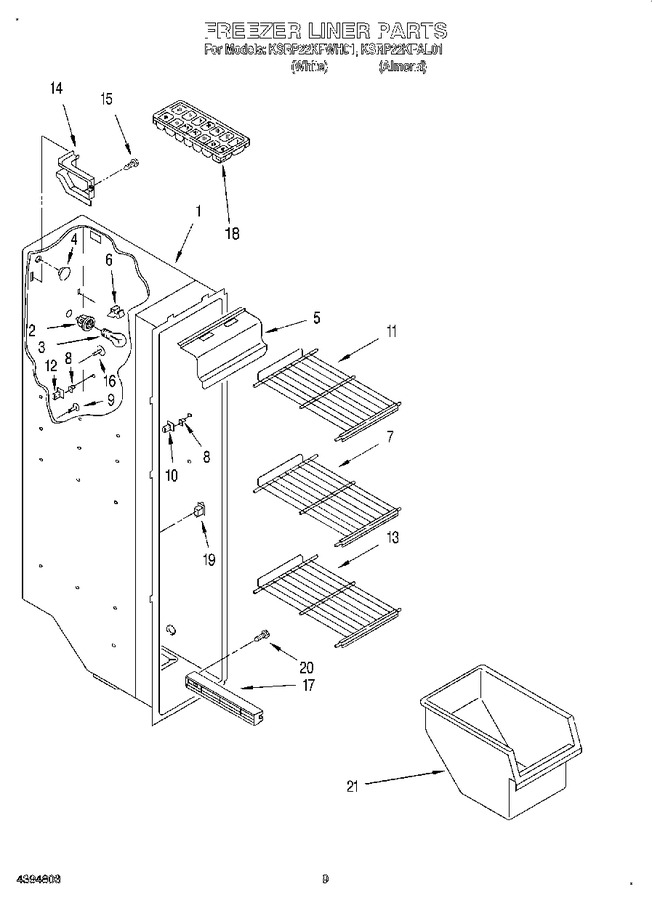

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	WPW10119935		Light Socket   (Replaces: 2155597)				$ 106.16
3	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
4	940014		Hole Plug				$ 18.33
5	WP2155595		Light Lens   (Replaces: 2155595)				$ 88.36
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	2174266		Shelf		Appelez-nous	-
8	946355		Support, Stud (2)		Appelez-nous	-
9	2176134		Grommet (4)				$ 5.83
10	946356		Stud, Front		Appelez-nous	-
11	WP2174249K		Shelf (1)   (Replaces: 2174249)				$ 221.75
11	2174265		Shelf (2)		Appelez-nous	-
12	1106982		Stud, Rear		Appelez-nous	-
13	2179325		Shelf		Appelez-nous	-
14	2161915		Cover, Wiring		Appelez-nous	-
15	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.72
16	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
17	W10845583		Slide, Bin (right Side)   (Replaces: 1119293)				$ 130.12
17	1115383		Slide, Bin (left Side)		Appelez-nous	-
18	WP841180A		Ice Cube Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
19	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 39.09
20	718257		Screw   (Replaces: 489100)		Appelez-nous	-
21	2171707		Bin, Freezer		Appelez-nous	-
