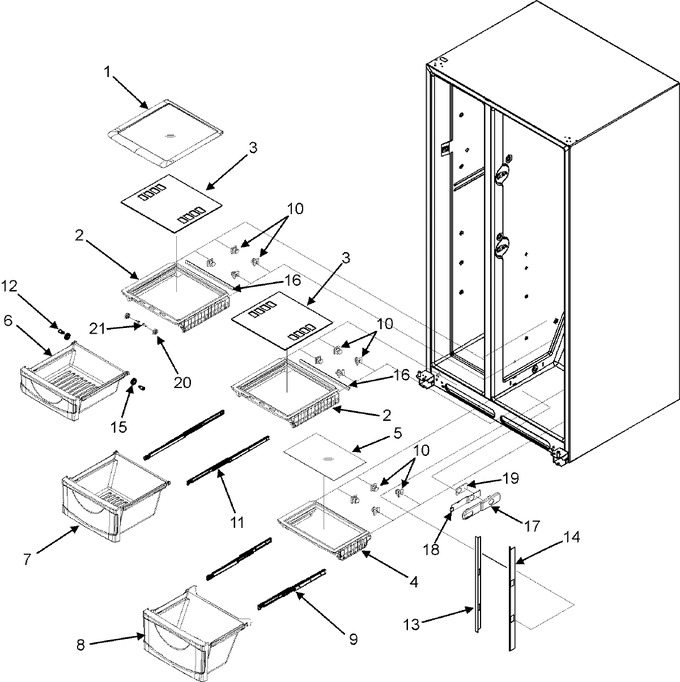

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004130		Shelf, Crisper Top	50	Appelez-nous	-
2	WP67004531		Frame, Crisper Shelf   (Replaces: 67004905)	50			$ 220.14
3	67004484		Barrier, Crisper Shelf	50	Appelez-nous	-
4	67004247		Frame, Meat Shelf	50	Appelez-nous	-
5	67004132		Glass, Meat Shelf	50	Appelez-nous	-
6	67004485		Pan, Sm Crisper	50	Appelez-nous	-
6	67005819		Pan, Sm Crisper	51	Appelez-nous	-
7	67005815		Pan, Lg Crisper	51	Appelez-nous	-
7	67004486		Pan, Lg Crisper	50	Appelez-nous	-
8	67005752		Pan, Meat	51	Appelez-nous	-
8	67004487		Pan, Meat	50	Appelez-nous	-
9	67005620		Glide, Meat Frame   (Replaces: 67004488)	50			$ 321.73
9	M0213129		Screw	50	Appelez-nous	-
9	67005898		Glide, Meat Frame (w/bumper)	51			$ 39.39
10	WP12603701		Support, Crisper Frame   (Replaces: 12603701)	50			$ 10.83
11	M0213129		Screw	50	Appelez-nous	-
11	67004489		Glide, Crisper Frame	50	Appelez-nous	-
11	67005620		Glide, Crisp Frame (w/bumper)	51			$ 321.73
12	67004174		Pin, Roller	50			$ 6.11
13	67004170		Pillar (lt)	50	Appelez-nous	-
14	67004171		Pillar (rt)	50	Appelez-nous	-
15	67004133		Roller, Pan	50	Appelez-nous	-
16	67004249		Seal, Crisper Frame (rear)	50	Appelez-nous	-
17	67004175		Housing, Temp. Control	50	Appelez-nous	-
18	67004176		Slide, Temp. Control	50	Appelez-nous	-
19	67004177		Gasket, Temp. Control	50	Appelez-nous	-
20	67004169		Roller, Crisper	50			$ 5.81
21	67006692		Screw, Shoulder   (Replaces: M0238105)	50			$ 10.79

    View Diagram in Separate Window       Print Part List
