SELECT A DIAGRAM

Diagram for 01 - Cabinet Back
01 - Cabinet Back

Diagram for 02 - Compressor
02 - Compressor

Diagram for 03 - Controls
03 - Controls

Diagram for 04 - Crisper Assembly
04 - Crisper Assembly

Diagram for 05 - Evap Fan/convection Fan/crisp Lt/filter
05 - Evap Fan/convection Fan/crisp Lt/filter

Diagram for 06 - Evaporator/rollers/water Tank
06 - Evaporator/rollers/water Tank

Diagram for 07 - Fountain
07 - Fountain

Diagram for 08 - Freezer Compartment
08 - Freezer Compartment

Diagram for 09 - Freezer Door
09 - Freezer Door

Diagram for 10 - Freezer Shelves
10 - Freezer Shelves

Diagram for 11 - Handles (msd2659kes)
11 - Handles (msd2659kes)

Diagram for 12 - Hinges
12 - Hinges

Diagram for 13 - Ice Bucket Assy.
13 - Ice Bucket Assy.

Diagram for 14 - Ice Maker
14 - Ice Maker

Diagram for 15 - Refrigerator Door
15 - Refrigerator Door

Diagram for 16 - Refrigerator Shelves
16 - Refrigerator Shelves

No Diagram Image Available
17 - Supplemental Information

Diagram for 18 - Wiring Information
18 - Wiring Information


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

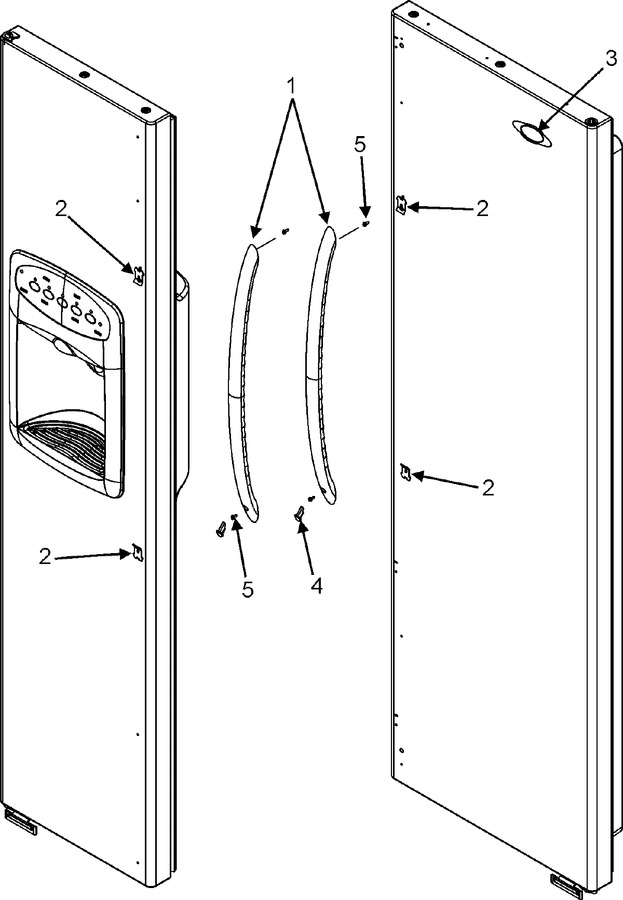

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67001914 Handle, Ref. Door (stnls) 50 Appelez-nous -
2 67002160 Clip, Door Handle 50 Special Order $ 20.12

3 2324038 Nameplate   (Replaces: 67003877) 50 Special Order $ 71.59

4 67002136 Cap, Handle (stnls) 50 Special Order $ 5.84

5 R9800670 Screw, Mounting   (Replaces: M0223230) 50 Special Order $ 10.58


    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for MSD2659KES
