SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Refrigerator Door


05 - Freezer Door


06 - Freezer Liner


07 - Air Flow


08 - Unit


09 - Control, Lit/optional

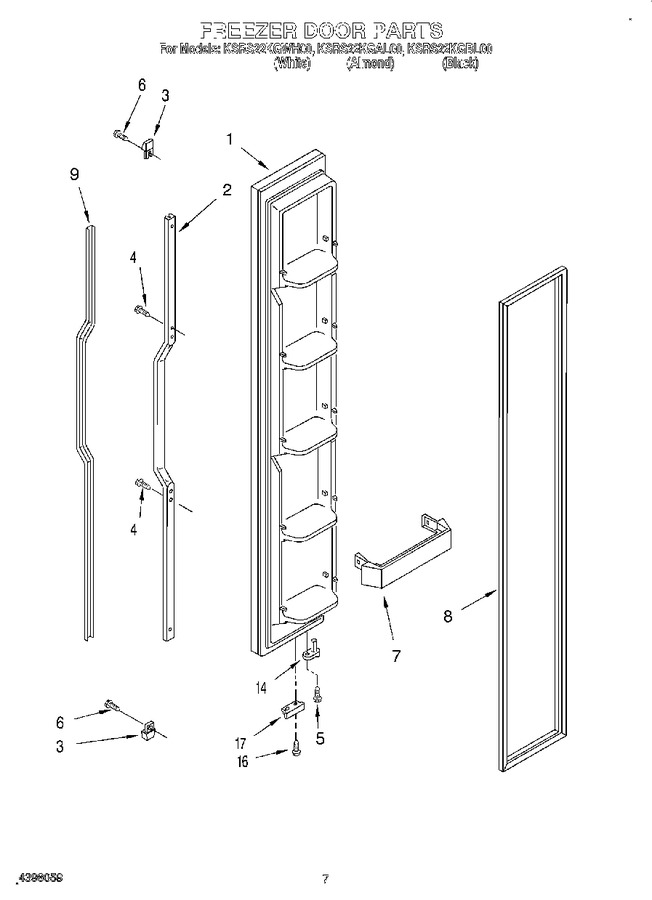

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194198N		Freezer Door (includes No.8) (almond)		Appelez-nous	-
1	2194198B		Freezer Door (includes No.8) (black)		Appelez-nous	-
1	2194198W		Freezer Door (includes No.8) (white)		Appelez-nous	-
2	2194776W		Retainer, Insert (white)		Appelez-nous	-
2	2194776N		Retainer, Insert (almond)		Appelez-nous	-
2	2194776B		Retainer, Insert (black)		Appelez-nous	-
3	2194778W		End Cap (2) (white)		Appelez-nous	-
3	2194778N		End Cap (2) (almond)		Appelez-nous	-
3	2194778B		End Cap (2) (black)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 7.82
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
7	2171071		Shelf Bin (5)		Appelez-nous	-
8	2159080		Door Gasket, Magnetic (service) (black)				$ 310.39
8	2159072		Door Gasket, Magnetic (service) (mist Beige)				$ 308.19
9	2173831		Insert, Handle (almond)		Appelez-nous	-
9	2173832		Insert, Handle (black)		Appelez-nous	-
9	2173830		Insert, Handle (white)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
16	WP489483		Screw   (Replaces: 489420)				$ 10.87
17	2195950		Bracket, Door Stop				$ 5.84

    View Diagram in Separate Window       Print Part List
