SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Refrigerator Door


05 - Freezer Door


06 - Freezer Liner


07 - Air Flow


08 - Unit


09 - Control, Lit/optional

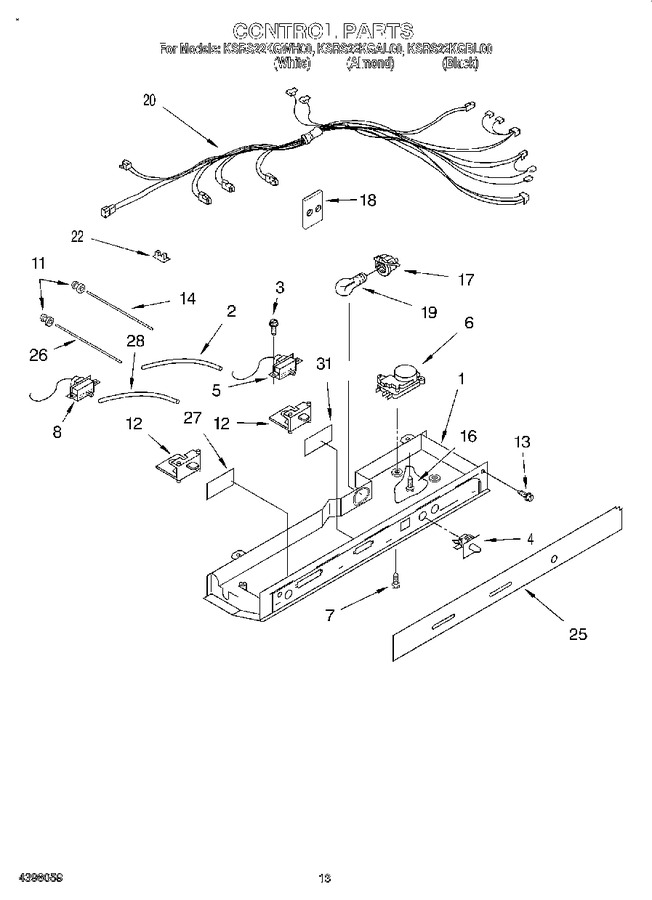

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat (rc)   (Replaces: 2182150)				$ 8.35
3	2006254		Screw (3)   (Replaces: 489214)				$ 13.79
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
5	WP2161460		Thermostat (r.c.)   (Replaces: 2161460)			Immediately	$ 261.10
6	W10822278		Defrost Timer   (Replaces: 2162046)			Immediately	$ 34.44
7	489392		Screw (2)   (Replaces: 489398)				$ 14.02
8	WP2182770		Thermostat (fc)   (Replaces: 2161461)			Immediately	$ 237.62
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 22.28
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 8.05
14	2179920		Light Bar (rc)				$ 37.08
16	WP488488		Screw (2)   (Replaces: 489290)				$ 8.52
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
18	2172931		Heat Shield				$ 73.90
19	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
20	2182130		Control Box Harness		Appelez-nous	-
22	1115375		Clip, Wiring				$ 11.15
25	2161486		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2172941		Window		Appelez-nous	-
28	WP2196003		Tube Barrier, Thermostat (fc)   (Replaces: 2196003)				$ 8.35
31	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
31	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
31	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
31	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
31	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
31	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
31	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
31	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
31	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
31	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
31	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
31	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
31	2172940		Window		Appelez-nous	-
31	350942		Primer White (13 Oz. Spray Can)				$ 94.14
31	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
31	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
31	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
31	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
31	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
31	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
31	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
31	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
31	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
31	833938		Kit, Terminal Connector				$ 8.47
31	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	W11729596		Kims9   (Replaces: 2155468)			Immediately	$ 150.98
	LIT2186647		Energy Label		Appelez-nous	-
	LIT2186638		Service & Wiring Sheet		Appelez-nous	-
	LIT2194922		Use & Care Guide		Appelez-nous	-
	1117510		Torx Key				$ 5.84
