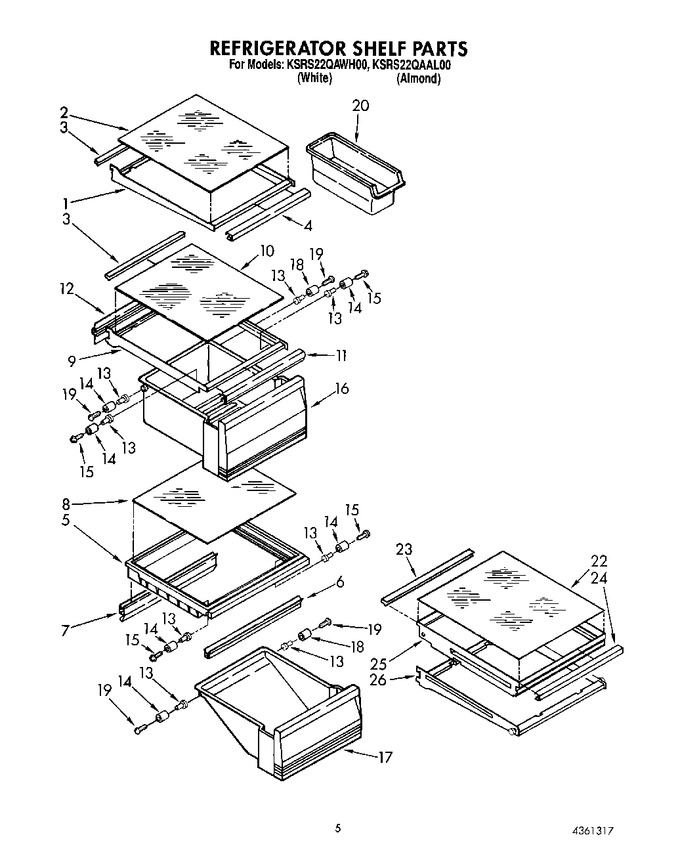

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1125597		Shelf Assembly, Cantilever (3)		Appelez-nous	-
2	1125593		Glass, Shelf		Appelez-nous	-
3	1125594		Retainer, Glass		Appelez-nous	-
4	1125786		Gasket, Front		Appelez-nous	-
5	WP2161491		Pan Cover Assembly (2)   (Replaces: 1126154)				$ 226.12
6	WP1125528		Gasket, Cover (front)   (Replaces: 1125705)				$ 153.99
7	1125706		Gasket, Cover (rear)		Appelez-nous	-
8	1125822		Glass, Cover (2)		Appelez-nous	-
9	2161760		Pan Shelf & Slide (includes 13, 14, & 15) Assembly		Appelez-nous	-
10	1125595		Glass, Shelf		Appelez-nous	-
11	1125814		Gasket (front)		Appelez-nous	-
12	1125817		Gasket (rear)		Appelez-nous	-
13	1112308		Eyelet, Roller		Appelez-nous	-
14	2161749		Roller		Appelez-nous	-
15	WP489261		Screw   (Replaces: 489212)				$ 7.61
16	2161755		Crisper Pan (2) (includes 13, 14, 18, & 19)		Appelez-nous	-
17	2161754		Utility Pan (includes 13, 14, 18, & 19)		Appelez-nous	-
18	2161750		Roller		Appelez-nous	-
19	WP489261		Screw   (Replaces: 489261)				$ 7.61
20	WP982704		Container   (Replaces: 1116917)				$ 31.00
22	2161683		Glass, Shelf		Appelez-nous	-
23	2161809		Reflector		Appelez-nous	-
24	2161686		Gasket, Front		Appelez-nous	-
25	2161706		Frame & Roller		Appelez-nous	-
26	2161806		Frame And Roller Asm. (cantilever)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
