SELECT A DIAGRAM

Diagram for 02 - Cabinet
02 - Cabinet

Diagram for 03 - Refrigerator Liner
03 - Refrigerator Liner

Diagram for 04 - Refrigerator Shelf
04 - Refrigerator Shelf

Diagram for 05 - Motor And Ice Container
05 - Motor And Ice Container

Diagram for 06 - Refrigerator Door
06 - Refrigerator Door

Diagram for 07 - Freezer Door
07 - Freezer Door

Diagram for 08 - Dispenser Front
08 - Dispenser Front

Diagram for 09 - Unit
09 - Unit

Diagram for 10 - Refrigerator Liner
10 - Refrigerator Liner

Diagram for 11 - Air Flow
11 - Air Flow

Diagram for 12 - Icemaker
12 - Icemaker

Diagram for 13 - Air Flow Cont., Lit/optional
13 - Air Flow Cont., Lit/optional


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1117848 Refrigerator, Door Panel (white) Appelez-nous -
1 1117852 Refrigerator Door (almond (also Order Item 18)) Appelez-nous -
2 1117999 Load Lock (4) Appelez-nous -
3 1125733 Door, Compartment Appelez-nous -
4 1125695 Gasket, Utility Door Appelez-nous -
5 1126149 Dike, Door Handle Side Appelez-nous -
6 1125936 Butter, Tray Appelez-nous -
7 1117950 Insert, Handle (white) Appelez-nous -
7 1117951 Insert, Handle (almond) Appelez-nous -
8 2188404A Door Gasket, Magnetic   (Replaces: 1125927) Special Order $ 269.26

9 509929 Cap, Hinge Sleeve Appelez-nous -
10 1107341 End Cap, Handle Appelez-nous -
11 941242 Screw Anchor Appelez-nous -
12 489075 Screw Appelez-nous -
13 1126150 Dike, Door Hinge Side Appelez-nous -
14 1107215 Handle Assembly Appelez-nous -
15 WP488729 Screw, 8 X 1/2 (4)   (Replaces: 487909) In-Stock Immediately $ 7.79

16 1107651 Spacer, Handle Appelez-nous -
17 1117904 Panel, Interior Door Appelez-nous -
18 876029 Foam Insulation (required When Replacing Exterior Door Panel) Appelez-nous -
19 WPW10141645 Screw (repair)   (Replaces: 489084) Special Order $ 7.67

19 WP489069 Screw, 7 X 1/2 (30)   (Replaces: 489101) In-Stock Immediately $ 7.86

20 1117898 Door Closer, Upper Cam Appelez-nous -
21 WP1104787 Shim, Door Closer   (Replaces: 1104787) Special Order $ 7.58

22 WP489069 Screw, 8 X 1/2   (Replaces: 488938) In-Stock Immediately $ 7.86

23 988420 Bracket, Door Stop Appelez-nous -
25 1125981 Holder, Beverage Appelez-nous -
26 988402 Tap Plate Appelez-nous -
27 1117953 Retainer, Insert (bottom) Appelez-nous -
28 1107241 Retainer, Insert Appelez-nous -
29 4318165 Door Closer, Upper Cam   (Replaces: 986758) In-Stock Immediately $ 27.36

31 1119061 Trim, Door Appelez-nous -
33 1117766 Gasket Retainer, Side (2) Special Order $ 36.55

34 1118301 Gasket Retainer, Top & Bottom Appelez-nous -
35 4318416 Black Grille Kit Appelez-nous -
35 1125555 Shelf Bin (4) Appelez-nous -
35 4318331 Trim Kit Trim Kit Panel Appelez-nous -
35 4211136 Trim Kit Panel (white) Appelez-nous -
35 4211135 Almond Handle Insert Appelez-nous -
35 4318334 Handle Insert (black) Appelez-nous -
35 4318335 Woodgrain Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

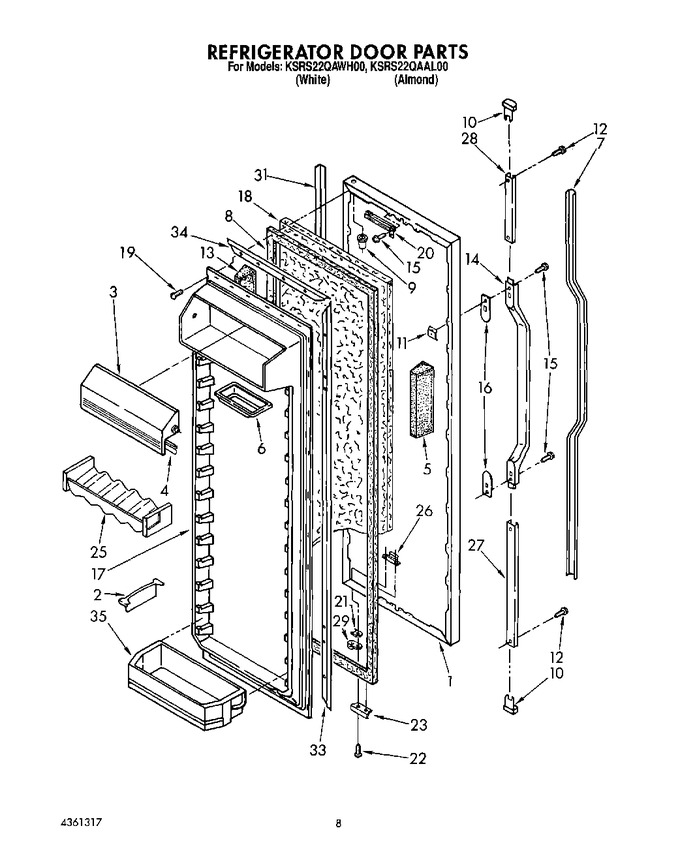

Diagram for KSRS22QAWH00
