01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

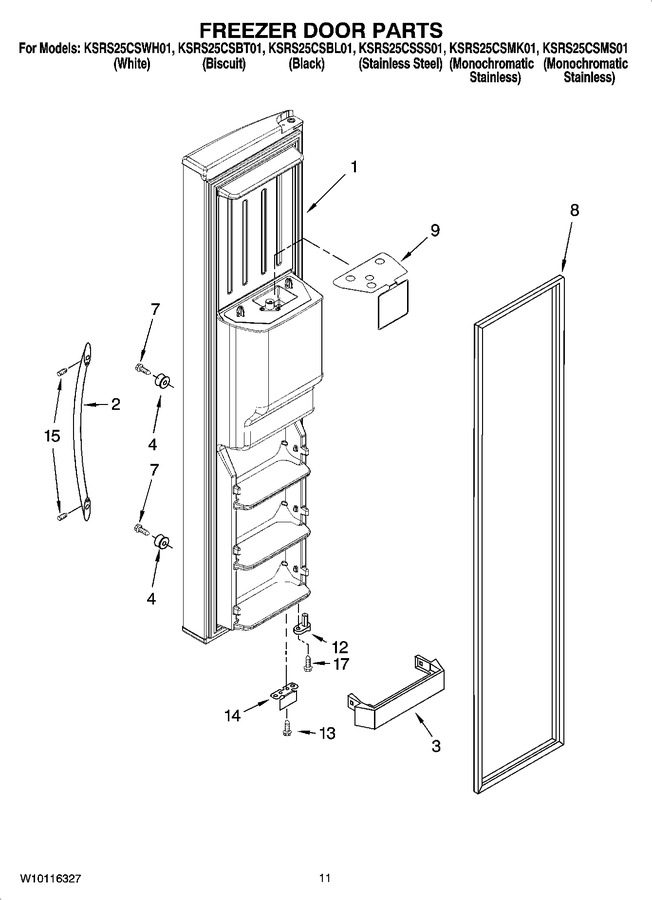

1	2303516W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2303516T		Freezer Door (includes 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2303516B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2303516SB		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2303516SUA		Freezer Door (includes 8 And Dispenser Front Parts) (monochromatic Stainless)		Appelez-nous	-
2	2319727W		Handle (white)				$ 106.80
2	2319727S		Handle (stainless Steel)				$ 133.96
2	2319727B		Handle (black)				$ 109.87
2	2319727T		Handle (biscuit)		Appelez-nous	-
3	2304925K		Trivet (3)		Appelez-nous	-
4	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
7	WP488163		Screw   (Replaces: 488208)				$ 7.92
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
9	2304895		Safety Barrier		Appelez-nous	-
12	WP2223752		Door Closer, Upper Cam   (Replaces: 2223752)				$ 21.16
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2303113B		Bracket, Door Stop (black)		Appelez-nous	-
14	2303113		Bracket, Door Stop (chrome)		Appelez-nous	-
15	WPW10010150		Screw (black)   (Replaces: W10010150)				$ 8.57
15	W11366418		Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
17	2305405		Tube, Water Dispenser		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
17	N/A		Following Parts Not Illustrated		Appelez-nous	-
17	2310084		Wire Assembly, Freezer Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
