SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts

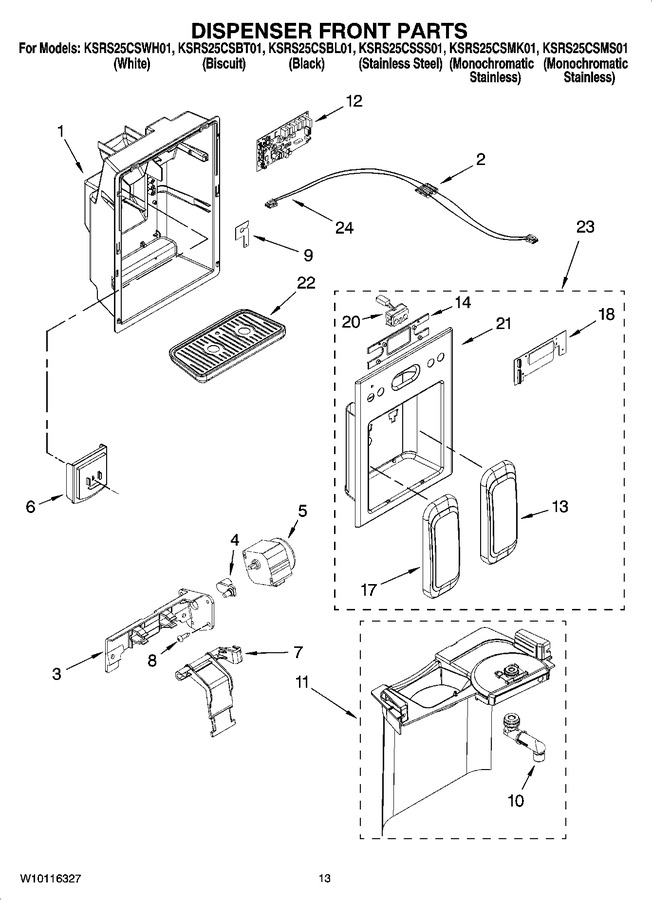

08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	2308165		Ferrite Bead		Appelez-nous	-
3	WP2305202		Bracket, Motor   (Replaces: 2305202)				$ 96.76
4	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 96.97
5	WPW10184813		Motor, Ice Door   (Replaces: 2305262)			Immediately	$ 103.17
6	WP2305258		Door, Ice   (Replaces: 2305258)				$ 24.85
7	WP2305204		Support, Ice Door   (Replaces: 2305204)				$ 88.22
8	WP4449745		Screw (2)   (Replaces: 4449745)				$ 7.49
9	2305447		Clip, Wiring		Appelez-nous	-
10	2305236		Spigot		Appelez-nous	-
11	2305461		Seperator Assembly		Appelez-nous	-
12	WP2303843		Electronic Cover (2) Control (core)   (Replaces: 2303843)				$ 347.99
13	W10133603		Pad, Water (for Black And Stainless Model)   (Replaces: 2305307GE)			Immediately	$ 323.05
13	W10133606		Pad, Water (for Biscuit Model)   (Replaces: 2305307MN)				$ 319.05
13	2305307CE		Pad, Water (for White Model)				$ 134.21
13	W10133606		Pad, Water (for Monochromatic Stainless Model)   (Replaces: 2305307AS)				$ 319.05
14	2305343		Lens, Front Cover		Appelez-nous	-
17	2305306CE		Pad, Ice (for White Model)		Appelez-nous	-
17	W10133606		Pad, Ice (for Biscuit Model)   (Replaces: 2305306MN)				$ 319.05
17	W10133603		Pad, Ice (for Black And Stainless Model)   (Replaces: 2305306GE)			Immediately	$ 323.05
17	W10133606		Pad, Ice (for Monochromatic Stainless Model)   (Replaces: 2305306AS)				$ 319.05
18	WP2321746		Cover, Electronic Control   (Replaces: 2304140)			Immediately	$ 303.66
20	2303841		Led Assembly		Appelez-nous	-
21	N/A		Front Cover, Housing (not Available, Order No.23)		Appelez-nous	-
22	2315110W		Drip Tray Assembly (white)		Appelez-nous	-
22	2315110US		Drip Tray Assembly (universal Silver)		Appelez-nous	-
22	2315110B		Drip Tray Assembly (black)		Appelez-nous	-
22	2315110T		Drip Tray Assembly (biscuit)		Appelez-nous	-
23	2318906T		Front Cover Assembly (includes Items 14, 17, 18, 20, & 21) (biscuit)		Appelez-nous	-
23	2318906B		Front Cover Assembly (includes Items 14, 17, 18, 20, & 21) (black)		Appelez-nous	-
23	2318906US		Front Cover Assembly (includes Items 14, 17, 18, 20, & 21) (universal Silver)				$ 437.91
23	2318906W		Front Cover Assembly (includes Items 14, 17, 18, 20, & 21) (white)		Appelez-nous	-
24	2187814		Wire Assembly, User Interface (includes 2)				$ 35.21
