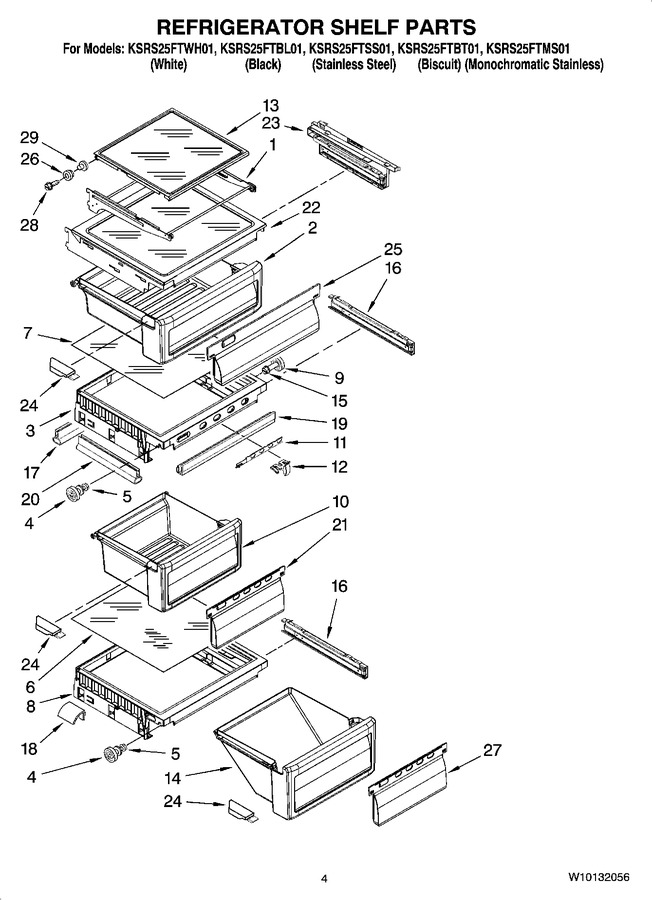

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2301072		Frame Assembly (2)		Appelez-nous	-
2	2301023		Snack Bin Asm (includes 24 & 25)		Appelez-nous	-
3	2301567		Cover, Crisper (includes 11, 12, 16, 17, 19 & 20)				$ 237.90
4	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.77
5	WP3-24004-109		Screw   (Replaces: 3400894)				$ 9.14
6	2301028		Glass, Meat Cover				$ 85.17
7	2301027		Glass, Cover		Appelez-nous	-
8	2301568		Cover, Meat Pan (includes 16 & 18)		Appelez-nous	-
9	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.87
10	W10916292		Crisper Pan Asm (includes 21 & 24)   (Replaces: 2301031)				$ 209.16
11	2301026		Slide, Humidity Control		Appelez-nous	-
12	2301025		Knob, Humidity Control				$ 74.39
13	2301084		Shelf & Roller Assembly (2)				$ 116.51
14	2301022		Meat Pan Asm (includes 24 & 27)		Appelez-nous	-
15	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
16	2301551		Glide Assembly (left Side)				$ 239.42
16	2301550		Glide Assembly (right Side)				$ 150.39
17	2301115		Gasket, Rear		Appelez-nous	-
18	2301126		Deflector		Appelez-nous	-
19	WP1125528		Gasket, Front   (Replaces: 2301116)				$ 161.69
20	2301117		Gasket, Side (2)				$ 143.37
21	2301001		Window, Crisper Pan				$ 75.59
22	2301566		Shelf, Snack Pan				$ 151.83
23	2301569		Support Assembly (right Side)				$ 118.73
23	2301570		Support Assembly (left Side)				$ 125.92
24	2301016		Cap, Corner (right Side)		Appelez-nous	-
24	2301017		Cap, Corner (left Side)		Appelez-nous	-
25	2301006		Window, Snack Pan				$ 135.77
26	2188212		Roller (2)		Appelez-nous	-
27	2301227		Window, Meat Pan		Appelez-nous	-
28	489439		Screw (2)		Appelez-nous	-
29	2174478		Eyelet, Roller				$ 5.70
