SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts

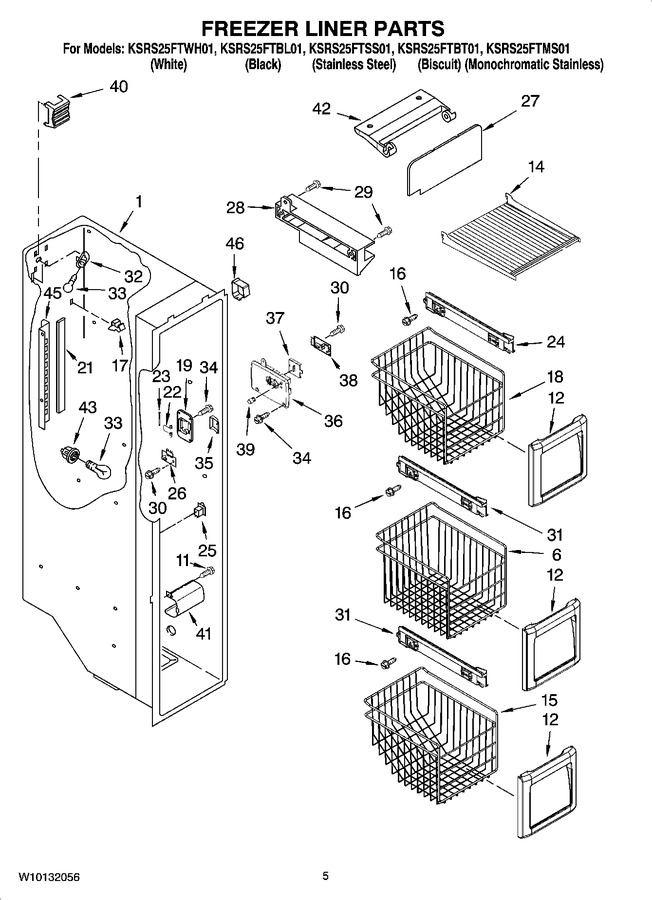

04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	2301139		Basket, Tall		Appelez-nous	-
11	W10142289		Screw   (Replaces: 3400893)				$ 9.61
12	2301134K		Front, Basket		Appelez-nous	-
14	2205837K		Shelf (2)				$ 42.67
15	2301140		Basket, Sloped		Appelez-nous	-
16	8534064		Screw (12)		Appelez-nous	-
17	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.94
18	2301138		Basket, Top		Appelez-nous	-
19	WP2198587		Cover, Emitter   (Replaces: 2198587)				$ 110.83
21	2198697		Gasket, Ladder				$ 36.87
22	WP2198635		Spring   (Replaces: 2198635)				$ 91.43
23	WP2198634		Pin   (Replaces: 2198634)				$ 18.65
24	2301540		Glide Assembly, Top Basket (right Side)		Appelez-nous	-
24	2301541		Glide Assembly, Top Basket (left Side)		Appelez-nous	-
25	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
26	W11629974		P.c. Board Emitter   (Replaces: 2220398)			Immediately	$ 421.12
27	WP2255720		Cover, Ice Maker   (Replaces: 2255590)				$ 78.56
28	2212321		Slide, Ice Maker Mounting				$ 67.14
29	WP489478		Screw   (Replaces: 489478)				$ 8.18
30	2006254		Screw   (Replaces: 489214)				$ 13.79
31	2301542		Glide Assembly, Middle/bottom Basket (right Side)		Appelez-nous	-
31	2301543		Glide Assembly, Middle/bottom Basket (left Side)		Appelez-nous	-
32	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
33	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
34	WPW10142283		Screw   (Replaces: 8281185)				$ 10.33
35	WP2198633		Flipper   (Replaces: 2198633)			Immediately	$ 50.68
36	2255561		Cover, Receiver		Appelez-nous	-
37	2315398		Slide, Ice Maker Shut Off   (Replaces: 2301340)				$ 11.45
38	W11629974		P.c. Board, Receiver   (Replaces: 2255114)			Immediately	$ 421.12
39	WP2198643		Lens   (Replaces: 2198643)				$ 8.59
40	2198589		Light Shield		Appelez-nous	-
41	W11298978		Light Lens   (Replaces: 2212340)				$ 98.57
42	WP2198641		Bracket, Ice Maker Cover   (Replaces: 2198641)				$ 7.55
43	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
45	2320024		Ladder (left Side)		Appelez-nous	-
45	2320025		Ladder (right Side)		Appelez-nous	-
46	2303234		Shield, Wiring		Appelez-nous	-
