Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2207106BU Refrigerator Door (includes Item No.6) Appelez-nous -
2 2182399 Door, Compartment Appelez-nous -
3 2205821 Shelf Bin (4) Appelez-nous -
4 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

6 2159083 Door Gasket, Magnetic (service) (black) Special Order $ 251.49

7 2193409 Beverage Holder Special Order $ 48.13

8 2207112BU Handle Appelez-nous -
10 WP2182179 Door Closer, Upper Cam   (Replaces: 2182178) In-Stock Immediately $ 6.39

11 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

12 2200082 Bracket, Door Stop Special Order $ 5.83

13 8281178 Screw (4) Appelez-nous -
18 2165792 Tray, Butter Appelez-nous -
20 2159124 Gasket Appelez-nous -
21 2207111CH Endcap Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

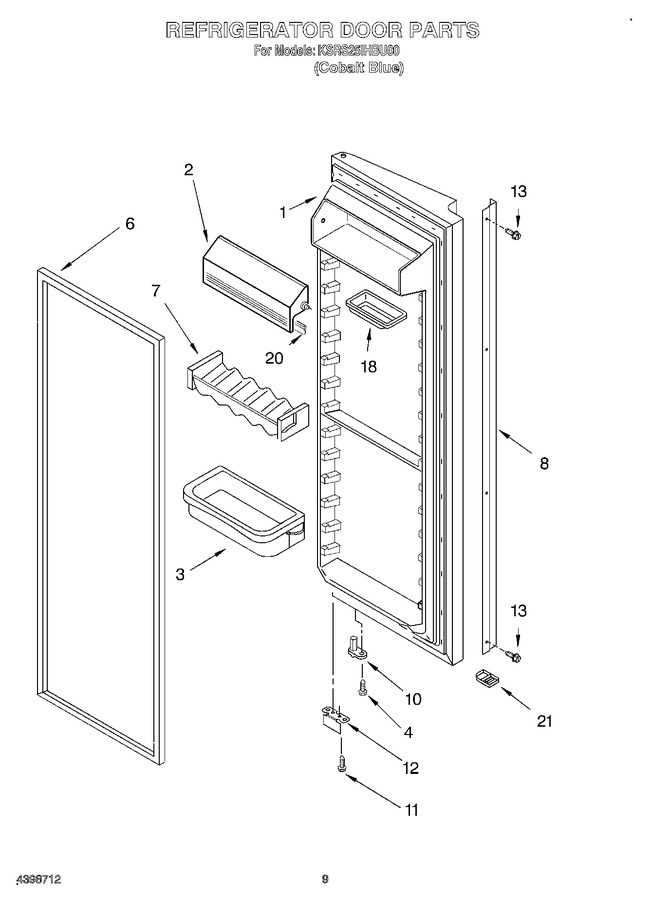

Diagram for KSRS25IHBU00
