Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2207104BU Freezer Door (includes No.8 And Dispenser Front Parts) Appelez-nous -
2 2207112BU Handle Appelez-nous -
3 2171070 Shelf Bin (3) Appelez-nous -
5 2206178 Dispenser Harness Special Order $ 36.28

6 WP2154473 Connector   (Replaces: 2154473) Special Order $ 24.83

7 8281178 Screw (4) Appelez-nous -
8 2159082 Door Gasket, Magnetic (service) (black) Special Order $ 332.49

10 WPW10307490 Trim, Door Shelf   (Replaces: 2198630) In-Stock Immediately $ 24.27

12 WP2182179 Door Closer, Upper Cam   (Replaces: 2182179) In-Stock Immediately $ 6.39

13 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

14 2200082 Bracket, Door Stop Special Order $ 5.83

17 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

19 WP489128 Screw   (Replaces: 488500) Special Order $ 11.40

23 2207110CH Endcap Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

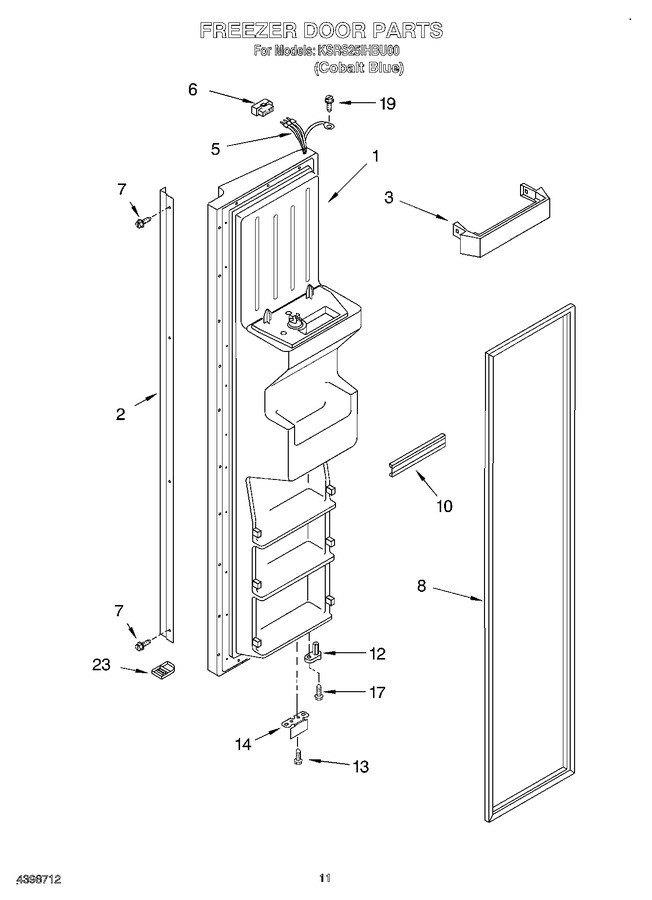

Diagram for KSRS25IHBU00
