Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2258617B Refrigerator Door (includes Item No.8) (black) Appelez-nous -
1 2323863S Refrigerator Door (includes Item No.8) (stainless) Appelez-nous -
1 2323863SA Refrigerator Door (includes Item No.8) (mono Stainless) Appelez-nous -
1 2327051W Refrigerator Door (includes Item No.8) (white) Appelez-nous -
2 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

3 2301486 Door, Compartment Appelez-nous -
4 WP2309941 Trivet, Shelf   (Replaces: 2309941) In-Stock Immediately $ 76.32

5 W11366418 Set Screw (silver)   (Replaces: W10010140) In-Stock Immediately $ 18.43

5 WPW10010150 Set Screw (black)   (Replaces: W10010150) Special Order $ 8.57

6 WPW10321304 Shelf Bin   (Replaces: 2304235) In-Stock Immediately $ 44.95

7 WPW10170540 Stud, Handle   (Replaces: W10170540) In-Stock Immediately $ 9.66

8 2159075 Door Gasket, Magnetic (service) (mist Beige)   (Replaces: 2309528) In-Stock Immediately $ 333.00

8 WPW10136734 Door Gasket, Magnetic (service) (apollo Grey)   (Replaces: 2327163) Special Order $ 335.39

8 2159083 Door Gasket, Magnetic (service) (black)   (Replaces: 2309529) Special Order $ 332.76

9 2319727B Handle (black) Special Order $ 109.87

9 2319727W Handle (white) Special Order $ 106.80

9 2319727S Handle (brushed Aluminum) Special Order $ 133.96

10 WP2182181 Thimble, Top   (Replaces: 2308091) Special Order $ 8.15

11 WPW10243393 Nameplate (white)   (Replaces: W10046670) Special Order $ 69.98

11 W10046610 Nameplate (culinary Grey) Special Order $ 33.40

11 WPW10243392 Nameplate (black)   (Replaces: W10046640) Special Order $ 73.70

12 WP2182179 Door Closer, Upper Cam   (Replaces: 2182178) In-Stock Immediately $ 7.20

13 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

14 W10185571 Bracket, Door Stop (black) Appelez-nous -
14 W10185570 Bracket, Door Stop (silver) Special Order $ 11.59


    View Diagram in Separate Window     Print Icon   Print Part List

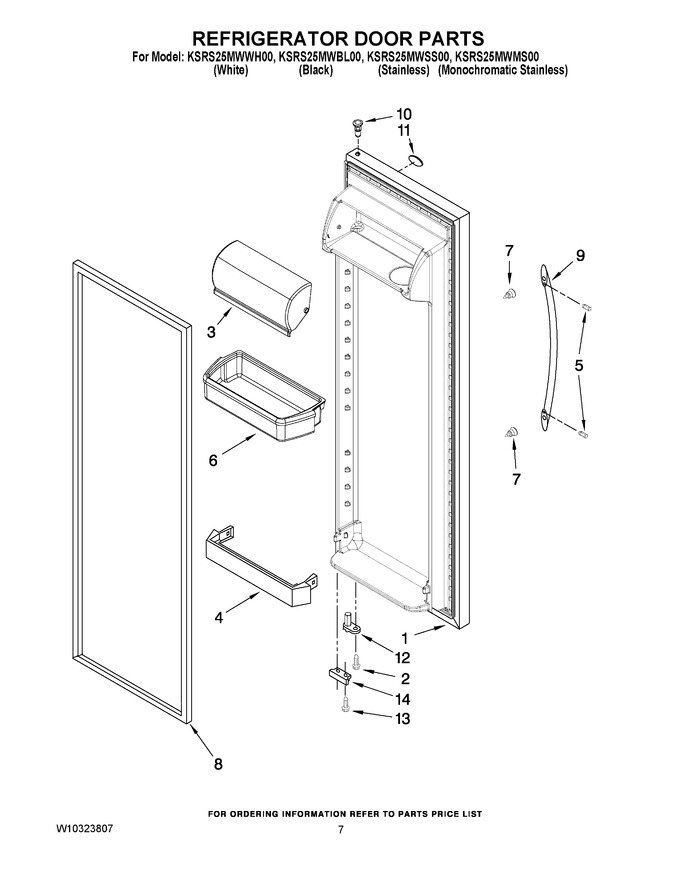

Diagram for KSRS25MWSS00
