Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

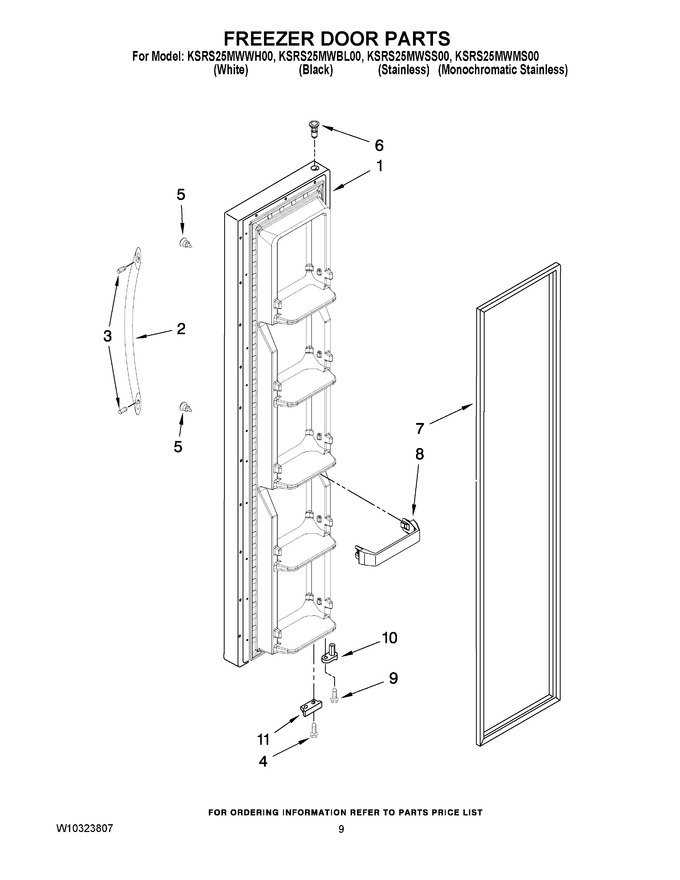

1	W10287497		Freezer Door (includes Item No.7) (black)		Appelez-nous	-
1	2309927S		Freezer Door (includes Item No.7) (stainless)		Appelez-nous	-
1	W10203193		Freezer Door (includes Item No.7) (mono Stainless)		Appelez-nous	-
1	2327058W		Freezer Door (includes Item No.7) (white)		Appelez-nous	-
2	2319727W		Handle (white)				$ 106.80
2	2319727B		Handle (black)				$ 109.87
2	2319727S		Handle (brushed Aluminum)				$ 133.96
3	W11366418		Screw, Set (silver)   (Replaces: W10010140)			Immediately	$ 18.43
3	WPW10010150		Screw, Set (black)   (Replaces: W10010150)				$ 8.57
4	WP489483		Screw   (Replaces: 489420)				$ 11.41
5	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 9.66
6	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
7	2159074		Door Gasket, Magnetic (service) (mist Beige)   (Replaces: 2309532)				$ 325.70
7	2159082		Door Gasket, Magnetic (service) (black)   (Replaces: 2309533)				$ 332.49
7	W10136735		Door Gasket, Magnetic (service) (apollo Grey)   (Replaces: 2327164)				$ 315.51
8	WP2171157		Trivet   (Replaces: 2171157)				$ 63.70
9	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
11	W10185567		Bracket, Door Stop (black)		Appelez-nous	-
11	W10185566		Bracket, Door Stop (silver)		Appelez-nous	-
