SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts

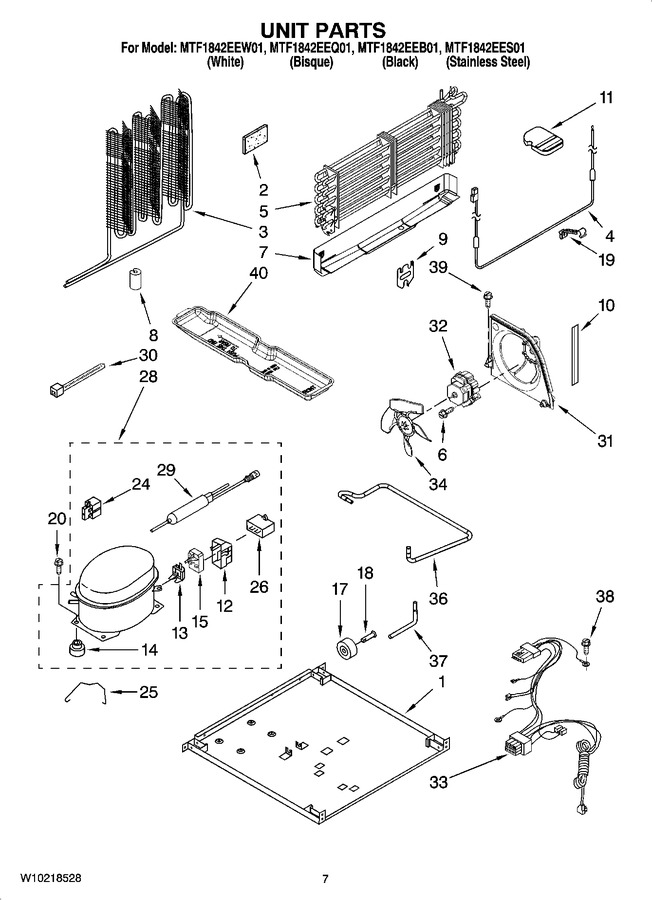

04 - Unit Parts


05 - Shelf Parts


06 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320188		Plate, Unit Mounting		Appelez-nous	-
2	W11553819		Insulation, Sound Dampening   (Replaces: 2169104)			Immediately	$ 14.07
3	W10159808		Condenser		Appelez-nous	-
4	WP2315531		Heater, Defrost   (Replaces: 2315531)				$ 104.62
5	2254250		Evaporator Assy.				$ 234.07
6	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
7	2254294		Drain Pan		Appelez-nous	-
8	W10852725		Grommet, Cond (4)   (Replaces: 2319835)				$ 7.70
9	2176301		Bracket, Heater				$ 6.37
10	2300638		Extension, Air Baffle				$ 52.69
11	2201184		Support Block				$ 6.43
12	WP2162358		Cover (service)   (Replaces: 4387731)				$ 90.75
13	WP2214067		Overload (service (includes Relay))   (Replaces: 4390624)				$ 131.66
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
15	WP2320150		Start-device (production Compressor Only)   (Replaces: 2320150)			Immediately	$ 89.45
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 18.21
19	2182338		Clip, Heater				$ 6.62
20	876811		Screw, Compressor   (Replaces: 489373)				$ 7.42
24	2183454		Relay (service Only)		Appelez-nous	-
25	2223314		Strap		Appelez-nous	-
26	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 58.86
26	WPW10662129		Capacitor (production)   (Replaces: 2169373)			Immediately	$ 58.86
28	W10309988		Compressor (includes Items 12, 13, 14 & 29)   (Replaces: W10171785)			Immediately	$ 559.32
29	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 30.78
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.90
31	WP2315541		Air Baffle   (Replaces: 2315541)			Immediately	$ 83.80
32	W10124096		Motor, Condenser   (Replaces: 2188728)			Immediately	$ 112.20
33	2310433		Wire Assy, Unit				$ 146.66
34	W11458267		Fan, Blade   (Replaces: 2225834)			Immediately	$ 23.99
36	2214924		Tube, Suction				$ 98.29
37	2154109		Tube, Process				$ 72.63
38	WP489128		Screw   (Replaces: 488500)				$ 10.88
39	3400518		Screw				$ 12.98
40	WP2254574		Evaporator Tray   (Replaces: 2254574)				$ 174.85
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35

    View Diagram in Separate Window       Print Part List
