SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts

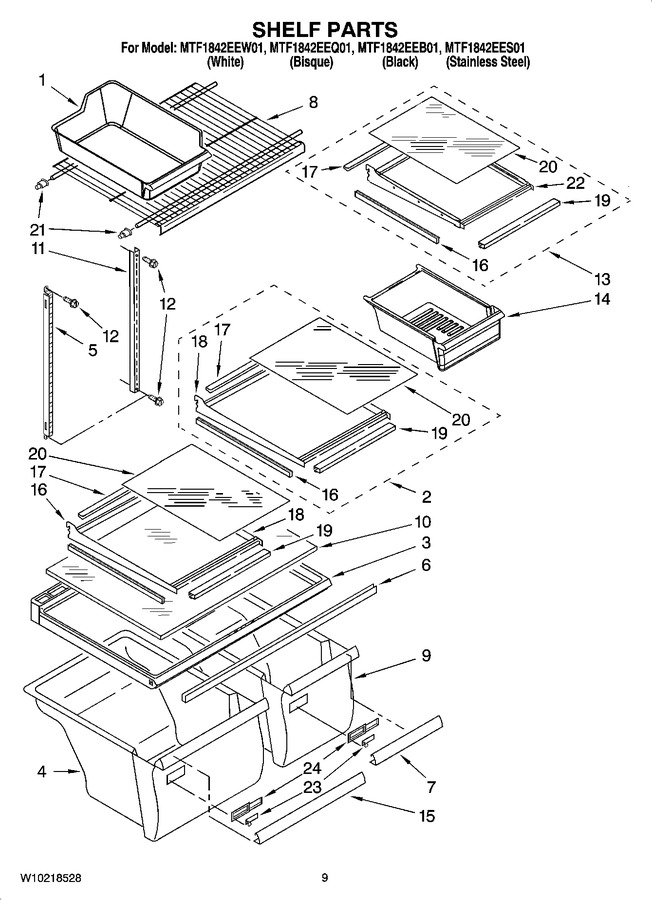

05 - Shelf Parts


06 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254352A		Ice Bucket   (Replaces: 2254352)				$ 55.85
2	2201109		Shelf, Cantilever (complete)				$ 121.04
3	WP2314548		Cover, Crisper   (Replaces: 2314548)				$ 247.46
4	W10854037		Crisper Pan (13-inch) (includes Illus. 23 & 24)   (Replaces: 2218130)			Immediately	$ 170.66
5	2300520		Shelf, Ladder Center				$ 75.36
6	WP2172748		Support, Crisper Cover   (Replaces: 2314477)				$ 97.22
7	2320366		Trim-crisper Pan-10``		Appelez-nous	-
8	WP2176275		Shelf   (Replaces: 2176275)				$ 123.40
9	W10856580		Crisper Pan (10-inch) (includes Illus. 23 & 24)   (Replaces: 2218129)			Immediately	$ 168.60
10	WP2169921		Glass, Crisper Cover   (Replaces: 2221693)				$ 246.60
11	2210522		Shelf, Ladder (2)				$ 44.10
12	WP489478		Screw   (Replaces: 489478)				$ 7.75
13	2201111		Shelf, Cantilever Meat Pan (complete)				$ 168.49
14	WP2218127K		Meat Pan   (Replaces: 2218127K)				$ 139.81
15	2320357		Trim-crisper Pan-13``		Appelez-nous	-
16	2188711		Trim Shelf, Side		Appelez-nous	-
17	WP2188689		Trim, Shelf Rear   (Replaces: 2188688)				$ 115.76
18	2201103E		Frame Assembly		Appelez-nous	-
19	2188690		Trim,shelf Front		Appelez-nous	-
20	2200986		Glass, Half Shelf				$ 120.53
21	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.00
22	2201105		Shelf-cantilever Meat Pan				$ 78.45
23	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
24	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 15.06

    View Diagram in Separate Window       Print Part List
