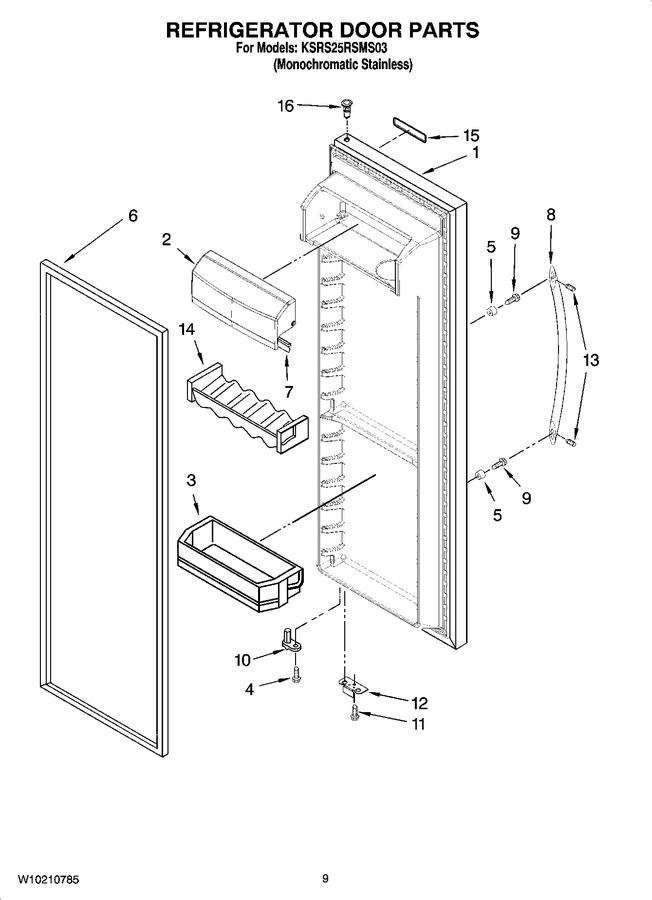

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2303139SAP		Refrigerator Door (includes Item 6) (mono Stainless)		Appelez-nous	-
2	2301486		Door Compartment (includes 7)		Appelez-nous	-
3	WP2223434K		Door Bin (4)   (Replaces: 2223434K)			Immediately	$ 102.08
4	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
5	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
6	WPW10136734		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326338)				$ 335.39
7	2159124		Gasket		Appelez-nous	-
8	2319727S		Handle (includes 13) (stainless)				$ 133.96
9	WP488163		Screw   (Replaces: 488208)				$ 7.92
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2303113		Bracket, Door Stop (chrome)		Appelez-nous	-
13	W11366418		Screw, Set (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
14	2193409K		Beverage Holder (2)		Appelez-nous	-
15	W10046610		Nameplate (stainless)				$ 33.40
16	WP2182181		Thimble, Top   (Replaces: 2303107)				$ 8.15
