01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)

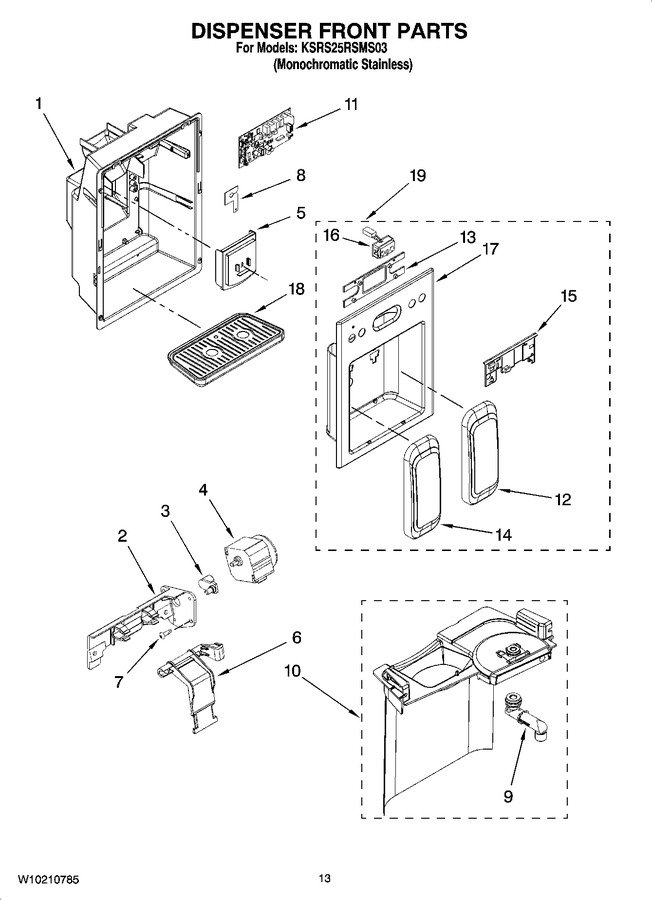

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP2305202		Bracket, Motor   (Replaces: 2305202)				$ 101.60
3	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 101.82
4	WPW10184813		Motor, Ice Door   (Replaces: 2305262)			Immediately	$ 108.33
5	WP2305258		Door, Ice   (Replaces: 2305258)				$ 26.09
6	WP2305204		Support, Ice Door   (Replaces: 2305204)				$ 92.63
7	WP4449745		Screw (4)   (Replaces: 4449745)				$ 7.98
8	2305447		Clip, Wiring		Appelez-nous	-
9	W10187441		Spigot				$ 119.98
10	2305456		Separator Assembly				$ 52.30
11	WP2303843		Electronic Control (core)   (Replaces: 2303843)				$ 365.39
12	W10133603		Pad, Water (for Monochromatic Stainless Model)   (Replaces: 2305307GN)			Immediately	$ 339.20
13	2305287		Lens, Front Cover		Appelez-nous	-
14	W10133603		Pad, Ice (for Monochromatic Stainless Model)   (Replaces: 2305306GN)			Immediately	$ 339.20
15	2305219		Cover, Pc Board				$ 92.99
16	W10222215		Led Assembly   (Replaces: 2305342)				$ 154.54
18	2323096US		Tray, Housing (universal Silver)		Appelez-nous	-
19	2305312S		Front Cover Assembly (includes Items 12, 13, 14, 16, & 17) (stainless)		Appelez-nous	-
