SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)

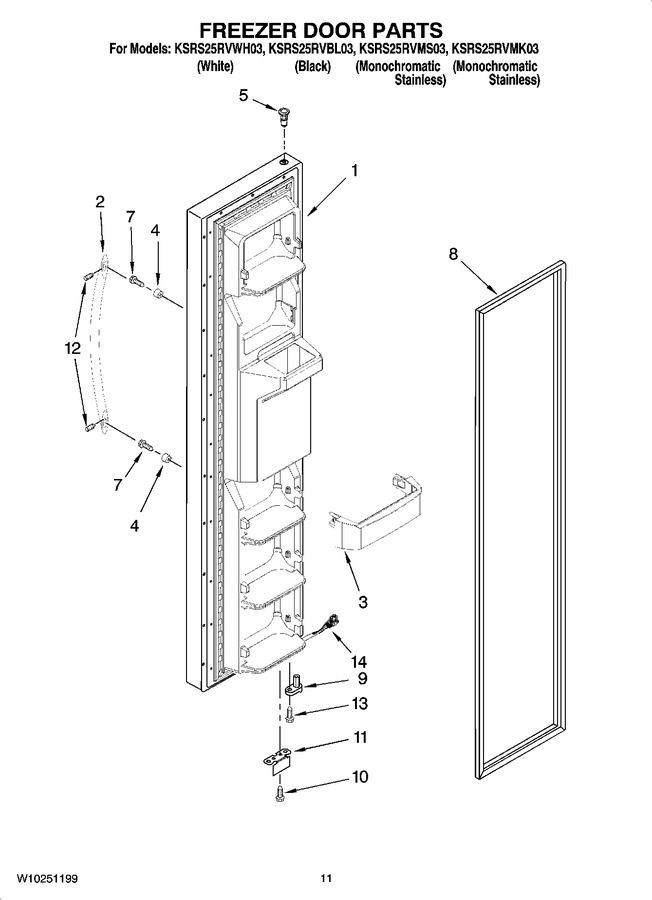

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10149880		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	W10149807		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10149763		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	2319727W		Handle (includes 15) (white)				$ 106.80
2	2319727B		Handle (includes 15) (black)				$ 109.87
2	2319727S		Handle (includes 15) (stainless)				$ 133.96
3	2223559K		Trivet (3)		Appelez-nous	-
4	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
5	WP2182181		Thimble, Top   (Replaces: 2303107)				$ 7.76
7	W10141596		Screw				$ 8.78
8	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
9	WP2223752		Door Closer, Upper Cam   (Replaces: 2223752)				$ 20.15
10	WPW10142233		Screw   (Replaces: W10142233)				$ 8.39
11	2303113		Bracket, Door Stop (chrome)		Appelez-nous	-
11	2303113B		Bracket, Door Stop (black)		Appelez-nous	-
12	WPW10010150		Screw, Set (black)   (Replaces: W10010150)				$ 7.88
12	W11366418		Screw, Set (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
13	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
14	2310075		Wire Assembly, Door Harness		Appelez-nous	-
	2305405		Tube, Water Dispenser		Appelez-nous	-
