Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10134300 Control Box Special Order $ 87.91

2 WP2149705 Switch   (Replaces: 2219875) In-Stock Immediately $ 40.40

3 WP3196557 Screw (4)   (Replaces: W10142284) In-Stock Immediately $ 7.95

4 2216879 Cover, Control Box Appelez-nous -
5 W10141140 Electronic Control Special Order $ 239.86

6 WP67006908 Screw (4)   (Replaces: 8281244) In-Stock Immediately $ 7.95

7 940014 Hole Plug Special Order $ 18.33

8 WP1115374 Clip, Wiring   (Replaces: 1115374) Special Order $ 7.75

10 4387478 Light Socket   (Replaces: 2162085) In-Stock Immediately $ 110.16

11 W11679940 Light Bulb   (Replaces: W10194422) In-Stock Immediately $ 11.30

12 W10167504 Control Box Harness Appelez-nous -
13 2318773 Overlay, Control Box Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

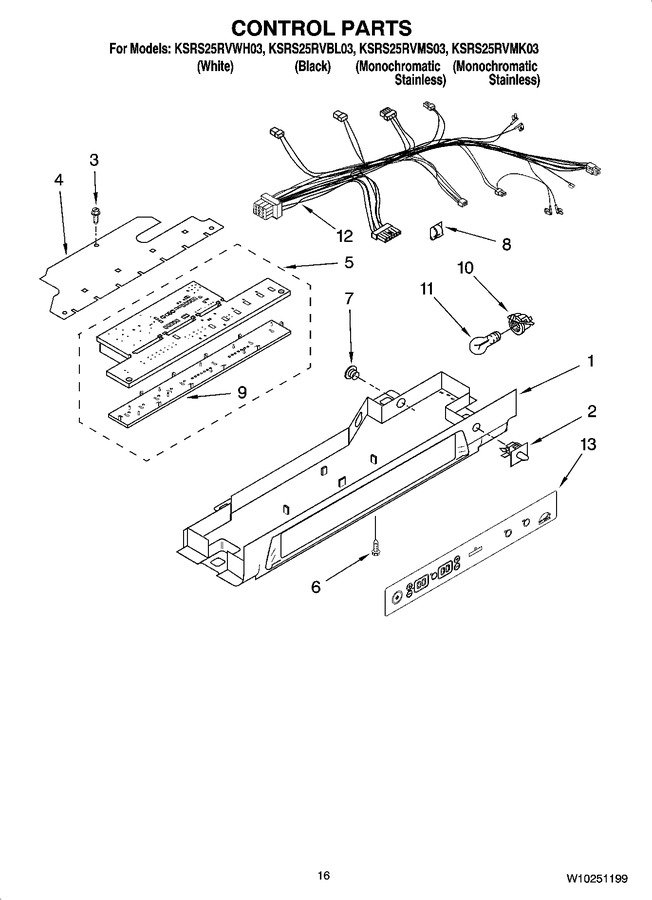

Diagram for KSRS25RVBL03
