SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts

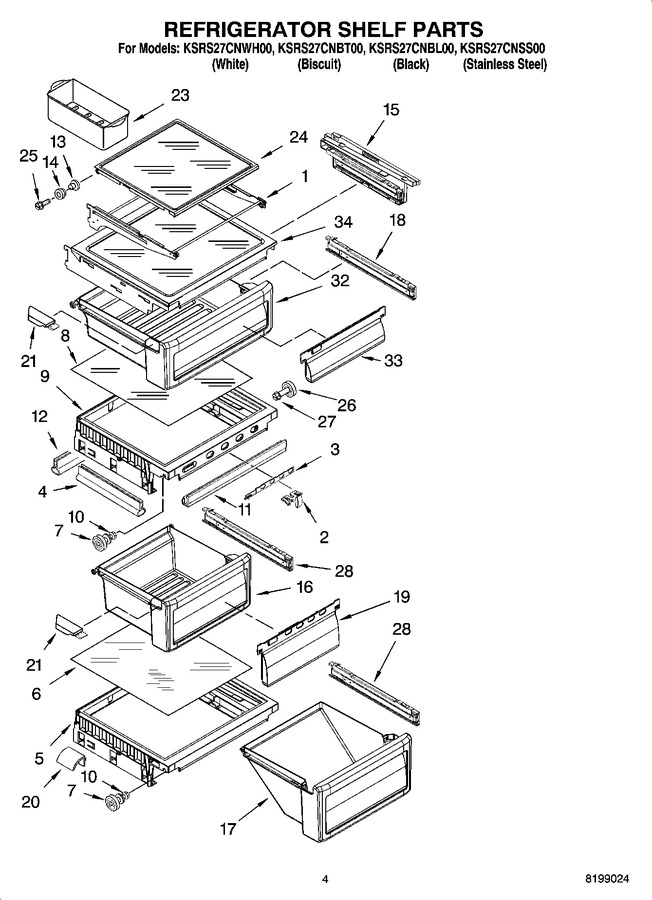

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2301072		Shelf Assembly, Cantilever (2)		Appelez-nous	-
2	2301025		Knob, Humidity				$ 74.39
3	2301026		Slide, Humidity		Appelez-nous	-
4	2301117		Gasket, Side (2)				$ 143.37
5	2301568		Cover, Meat Pan (includes 20 & 28)		Appelez-nous	-
6	2301028		Glass, Meat Pan Cover				$ 85.17
7	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.07
8	2301027		Glass, Crisper Cover		Appelez-nous	-
9	2301567		Cover, Crisper (includes 2, 3, 4, 11, 12 & 28)				$ 237.90
10	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.05
11	WP1125528		Gasket, Front   (Replaces: 2301116)				$ 153.99
12	2301115		Gasket, Rear		Appelez-nous	-
13	2174478		Eyelet, Roller				$ 5.70
14	2188212		Roller		Appelez-nous	-
15	2301570		Support Assembly (left Side)				$ 125.92
15	2301569		Support Assembly (right Side)				$ 118.73
16	W10916292		Crisper Pan (includes 21)   (Replaces: 2301031)				$ 199.20
17	2301022		Meat Pan		Appelez-nous	-
18	2301551		Glide Assembly (snack Pan) (left Side)				$ 239.42
18	2301550		Glide Assembly (snack Pan) (right Side)				$ 150.39
19	2301001		Window, Crisper Pan				$ 75.59
20	2301126		Deflector		Appelez-nous	-
21	2301016		Cap, Crisper Pan (right Side)		Appelez-nous	-
21	2301017		Cap, Crisper Pan (left Side)		Appelez-nous	-
23	W10136387A		Egg Bin   (Replaces: 2216624)				$ 18.61
24	2301084		Shelf & Roller Assembly (2)				$ 116.51
25	489439		Screw		Appelez-nous	-
26	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
27	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
28	2301549		Glide Asm, Pan (left Side)				$ 123.81
28	2301548		Glide Asm, Pan (right Side)				$ 224.83
32	2301023		Snack, Pan (includes 21 & 33)		Appelez-nous	-
33	2301006		Window, Snack Pan				$ 135.77
34	2301566		Shelf, Snack Pan (includes 15)				$ 151.83

    View Diagram in Separate Window       Print Part List
