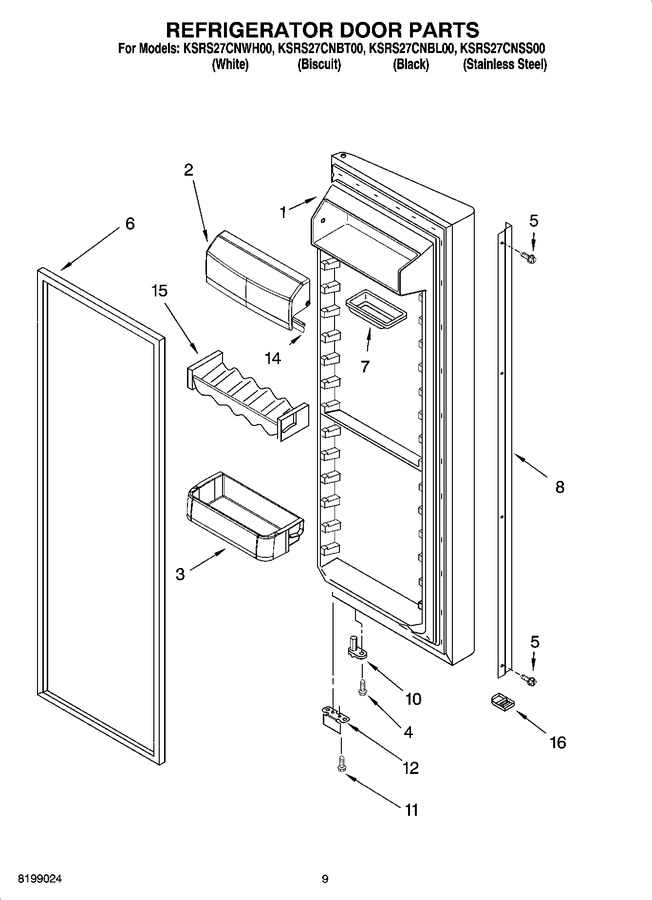

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207184W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2207184T		Refrigerator Door (includes Item 6) (biscuit)		Appelez-nous	-
1	2207184B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	2207184S		Refrigerator Door (includes Item 6) (stainless)		Appelez-nous	-
2	2301486		Compartment Door		Appelez-nous	-
3	2223437		Door Bin (4)		Appelez-nous	-
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
5	3400898		Screw		Appelez-nous	-
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
7	2165792		Butter, Dish		Appelez-nous	-
8	2220238W		Handle (white)		Appelez-nous	-
8	2220238B		Handle (black)		Appelez-nous	-
8	2220238S		Handle (stainless)		Appelez-nous	-
8	2220238T		Handle (biscuit)		Appelez-nous	-
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	2206910		Bracket, Door Stop		Appelez-nous	-
14	2159124		Gasket		Appelez-nous	-
15	2193409		Beverage Holder				$ 48.13
16	2207111B		Endcap, Bottom (black)		Appelez-nous	-
16	2207111W		Endcap, Bottom (white)		Appelez-nous	-
16	2207111T		Endcap, Bottom (biscuit)		Appelez-nous	-
