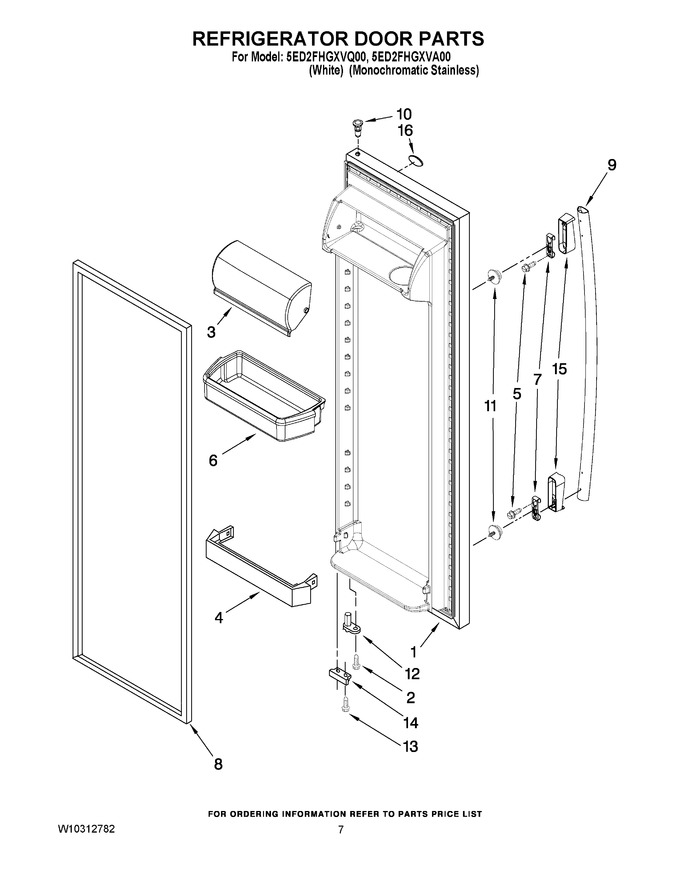

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309622LA		Refrigerator Door (includes Item No.8) (satina/apollo)		Appelez-nous	-
1	2325248W		Refrigerator Door (includes Item No.8) (white)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
4	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 76.32
5	WP8533988		Screw (4)   (Replaces: W10155511)			Immediately	$ 7.95
6	WPW10321304		Shelf Bin (3)   (Replaces: 2304235)			Immediately	$ 44.73
7	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
8	2159073		Door Gasket, Magnetic (service) (mist Beige)   (Replaces: 2309600)				$ 317.32
8	W10136732		Door Gasket, Magnetic (service) (apollo Grey)   (Replaces: 2327161)			Immediately	$ 344.00
9	WPW10127761K		Handle (white)   (Replaces: W10127765)				$ 186.67
9	WPW10257118K		Handle (satina)   (Replaces: W10257118)				$ 187.61
10	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
11	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 8.69
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	W10185570		Bracket, Door Stop				$ 11.59
15	W10127769		Endcap (white)		Appelez-nous	-
15	W10127772		End Cap (apollo Grey)				$ 49.75
16	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
