01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Air Flow Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Unit Parts


09 - Motor And Ice Container Parts


10 - Dispenser Front Parts


11 - Icemaker Parts


12 - Control Parts


13 - Optional Parts (not Included)

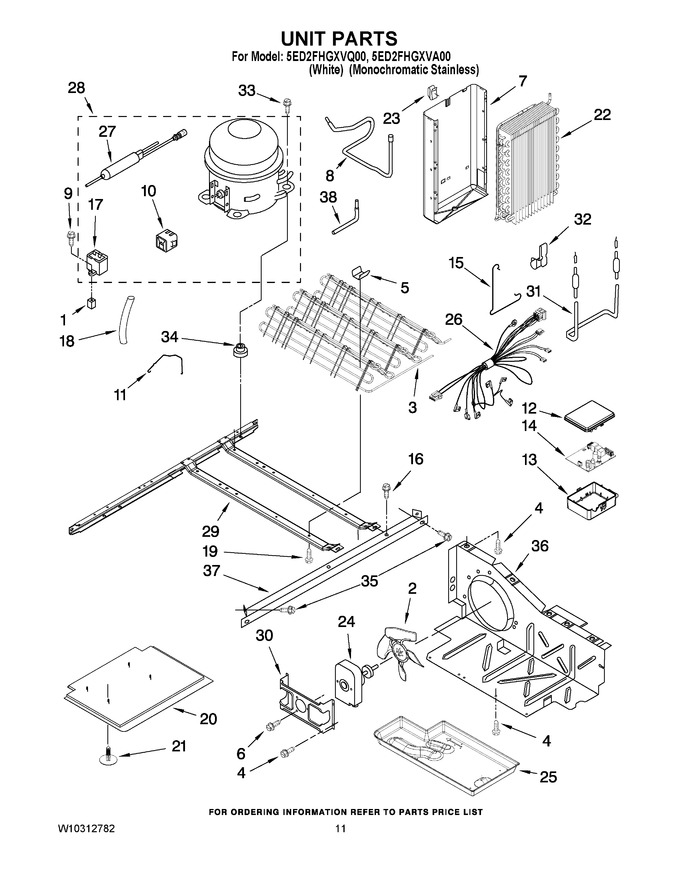

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	509812		Grommet, Screw		Appelez-nous	-
2	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 23.99
3	2324712		Condenser Assembly   (Replaces: W10222348)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 18.46
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
7	WPW10194474		Heat Shield And Drain Pan   (Replaces: W10194474)				$ 119.53
8	2205764		Tube Suction				$ 84.93
9	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
10	WP2312007		Start-device Combination (start Relay And Overload) (service)   (Replaces: 2312007)				$ 180.66
11	2302129		Bale Strap		Appelez-nous	-
12	W10132975		Box Cover		Appelez-nous	-
13	W10132976		Control Box		Appelez-nous	-
14	2321818		Elec. Control		Appelez-nous	-
15	2161324		Clip, Defrost Heater		Appelez-nous	-
16	WP489427		Screw   (Replaces: 489427)				$ 7.47
17	2321245		Capacitor (service)   (Replaces: 2254217)		Appelez-nous	-
17	2321245		Capacitor (production)		Appelez-nous	-
18	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
19	W11544659		Screw   (Replaces: 8281232)				$ 13.67
20	W11115203		Unit Cover, Bottom   (Replaces: 2304898)				$ 517.91
21	489396		Clip				$ 10.72
22	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 339.85
23	2155547		Clip, Heat		Appelez-nous	-
24	WP2321271		Motor, Fan   (Replaces: 2321271)				$ 309.96
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	W10139143		Harness, Unit		Appelez-nous	-
27	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 30.78
27	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
28	W10183407		Compressor (includes Items 10, 17, 27, & 34) (also Order 876765 Tube Kit)   (Replaces: W10120455)				$ 414.86
29	2304903		Unit Mounting Frame				$ 233.03
30	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
31	WPW10123612		Heater, Defrost   (Replaces: W10123612)				$ 83.57
32	2161324		Clip		Appelez-nous	-
33	876811		Screw   (Replaces: 489373)				$ 7.42
34	876811		Grommet (4) (service)   (Replaces: 1100826)				$ 7.42
35	489340		Screw		Appelez-nous	-
36	W10163483		Air Baffle		Appelez-nous	-
37	W10207512		Unit Mounting Rail		Appelez-nous	-
38	2325479		Process Tube		Appelez-nous	-
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.0 Oz. (r-134a))		Appelez-nous	-
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
