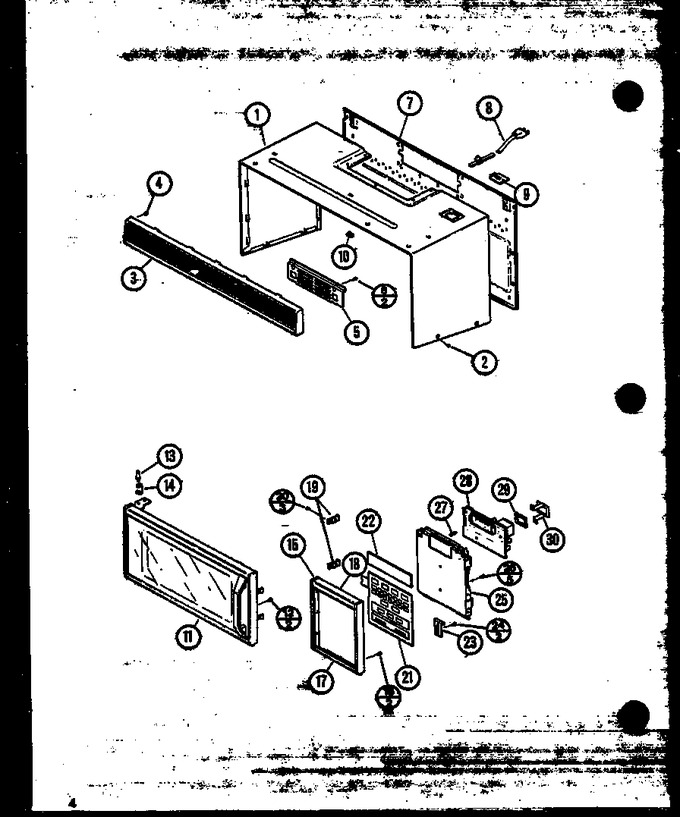

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0703208		Outer Case		Appelez-nous	-
2	W11233072		Screw   (Replaces: R0700068)			Immediately	$ 13.25
3	R0705886		Grille Assy		Appelez-nous	-
4	R0700069		Screw		Appelez-nous	-
5	R0705910		Barrier, Front		Appelez-nous	-
6	W11233072		Screw   (Replaces: R0700067)			Immediately	$ 13.25
7	R0703209		Plate, Mounting		Appelez-nous	-
8	R0705022		Cord, Power Supply		Appelez-nous	-
9	R0701555		Cable Clamp		Appelez-nous	-
10	M0286708		Nut, Speed   (Replaces: R0701023)				$ 43.07
11	R0710168		Door Assy		Appelez-nous	-
12	R0700059		Screw		Appelez-nous	-
13	R0701554		Bolt, Hinge Upper		Appelez-nous	-
14	R0700516		Washer, Smooth		Appelez-nous	-
14	R0700517		Washer Toothed		Appelez-nous	-
15	R0705877		Control Pnl Esc		Appelez-nous	-
16	WPW10068250		Screw   (Replaces: R0700063)				$ 3.84
17	R0705904		Trim Control Panel Lower		Appelez-nous	-
18	R0705905		Trim Control Panel Upper		Appelez-nous	-
19	R0705907		Bracket, Front Panel		Appelez-nous	-
20	R0700070		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
21	R0710166		Key Board Assy		Appelez-nous	-
22	R0710165		Crystal Gray		Appelez-nous	-
23	R0705878		Hinge		Appelez-nous	-
24	R0700062		Screw		Appelez-nous	-
25	R0705906		Bracket, Control Panel		Appelez-nous	-
26	R0700061		Screw		Appelez-nous	-
27	R0705911		Support, Pcb		Appelez-nous	-
28	R0710167		P C Board		Appelez-nous	-
29	R0705908		Cover L.v. Transformer		Appelez-nous	-
30	R0705909		Bracket L.v. Transformer		Appelez-nous	-
