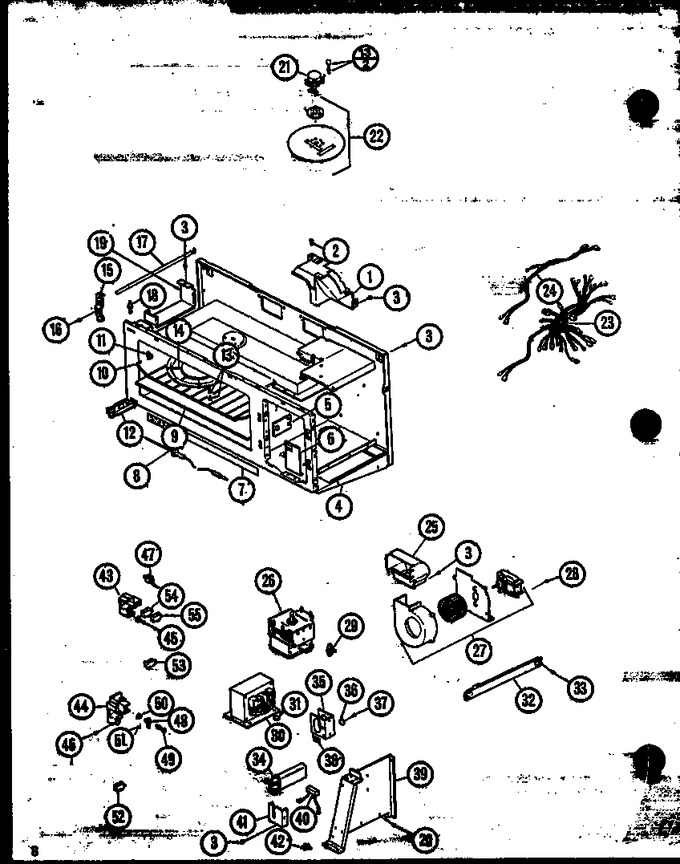

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0703215 | Duct |
|
- | |||||
| 2 | R0701559 | Clip |
|
- | |||||
| 3 | R0700070 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 4 | R0703212 | Base Plate |
|
- | |||||
| 5 | R0705894 | Barrier Magnetron |
|
- | |||||
| 6 | R0705895 | Barrier Hv Trans |
|
- | |||||
| 7 | R0173004 | Capillary Assy |
|
- | |||||
| 8 | R0710164 | Probe |
|
- | |||||
| 9 | R0712514 | Tray Ceramic |
|
- | |||||
| 10 | R0705902 | Oven Rack |
|
- | |||||
| 11 | R0705899 | Support, Rack |
|
- | |||||
| 12 | R0705891 | Base, Bridge Left |
|
- | |||||
| 13 | R0701556 | Push Rivet (1=12) |
|
- | |||||
| 14 | R0705897 | Cover Stirrer |
|
- | |||||
| 15 | R0705890 | Guide Mtg Shaft |
|
- | |||||
| 16 | W11233072 | Screw (Replaces: R0700067) |
|
Immediately | $ 13.25 | ||||
| 17 | R0705901 | Shaft Mounting |
|
- | |||||
| 18 | R0701554 | Bolt, Hinge Upper |
|
- | |||||
| 19 | R0705880 | Duct, Side, Left |
|
- | |||||
| 20 | R0700058 | Screw |
|
- | |||||
| 21 | R0707008 | Motor, Stirrer |
|
- | |||||
| 22 | YR0710169 | Stirrer Blade |
|
- | |||||
| 23 | R0705020 | Main Wiring Harness |
|
- | |||||
| 24 | R0705021 | Wire Harness |
|
- | |||||
| 25 | R0705893 | Air Guide, Side |
|
- | |||||
| 26 | R0713501 | Magnetron |
|
- | |||||
| 27 | R0707009 | Blower Motor Assy |
|
- | |||||
| 28 | R0700059 | Screw |
|
- | |||||
| 29 | R0711018 | Thermostat, Switch |
|
- | |||||
| 30 | R0710501 | Transformer H V |
|
- | |||||
| 31 | R0700515 | Washer, Toothed |
|
- | |||||
| 32 | R0705898 | Bracket Bridge Right |
|
- | |||||
| 33 | R0700059 | Screw |
|
- | |||||
| 34 | R0711501 | Capacitor |
|
- | |||||
| 35 | R0705896 | Bracket Hv Capacitor |
|
- | |||||
| 36 | R0700513 | Washer Spring |
|
- | |||||
| 37 | WPW10068250 | Screw (Replaces: R0700060) |
|
$ 3.84 | |||||
| 38 | R0701557 | Fastener Hvc |
|
- | |||||
| 39 | R0703214 | Duct Side |
|
- | |||||
| 40 | WP13091701 | Rectifier (Replaces: R0709505) |
|
$ 33.29 | |||||
| 41 | R0705903 | Barrier, Hvc |
|
- | |||||
| 42 | R0711019 | Thermostat |
|
- | |||||
| 43 | R0705882 | Latch Body Upper |
|
- | |||||
| 44 | R0705881 | Latch Body Lower |
|
- | |||||
| 45 | R0700056 | Screw |
|
- | |||||
| 46 | R0700057 | Screw |
|
- | |||||
| 47 | R0712515 | Socket Probe |
|
- | |||||
| 48 | R0705887 | Lever Hook |
|
- | |||||
| 49 | R0700053 | Screw |
|
- | |||||
| 50 | R0705808 | Flue, Upper Oven |
|
- | |||||
| 51 | R0705889 | Spring Hook |
|
- | |||||
| 52 | R0702549 | Switch, Secondary |
|
- | |||||
| 53 | R0702546 | Switch, Monitor |
|
- | |||||
| 54 | R0702547 | Switch, Door |
|
- | |||||
| 55 | WP56001036 | Switch, Primary (Replaces: R0702548) |
|
$ 78.58 |
