SELECT A DIAGRAM

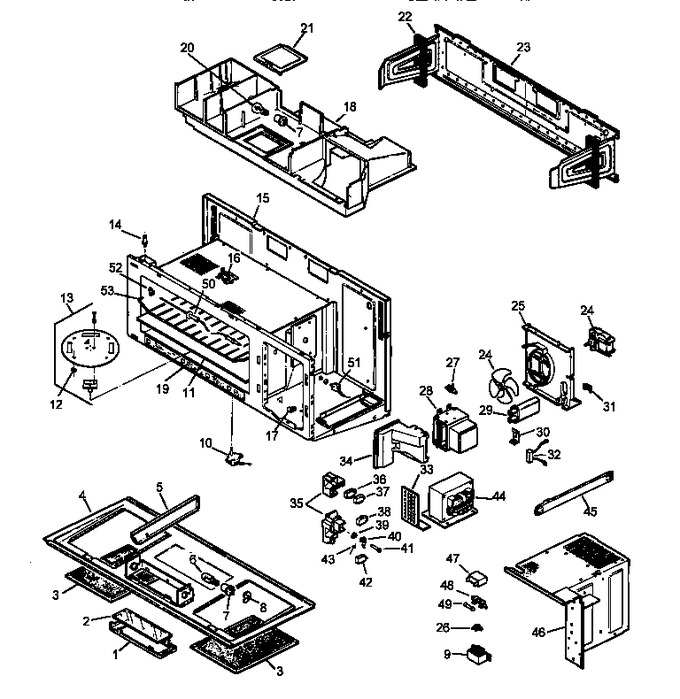

01 - Chassis Assy & Electrical Components


02 - Door/control Panel Assy


03 - Miscellaeous Information


04 - Outercase Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0705959		Brkt, Cooktop Glass		Appelez-nous	-
2	R0707549		Crystal, Lamp		Appelez-nous	-
3	R0710162		Air Filter		Appelez-nous	-
3	R0710163		Charcoal Filter				$ 102.53
4	R0705962		Bottom Plate		Appelez-nous	-
5	R0708246		Bottom, Enclosure		Appelez-nous	-
6	8206232A		Bulb   (Replaces: R0712015)			Immediately	$ 6.94
7	R0712517		Socket-lamp		Appelez-nous	-
8	R0708247		Bracket, Socket		Appelez-nous	-
9	R0710504		Transformer, L.v.		Appelez-nous	-
10	56001337		Motor, Stirrer   (Replaces: R0707015)				$ 156.84
11	R0703236		Bottom Tray Assy		Appelez-nous	-
12	R0701565		Space, Stirrer		Appelez-nous	-
13	R0710810		Stirrer Assembly		Appelez-nous	-
14	R0700079		Bolt, Flange M5x12		Appelez-nous	-
18	R0703273		Duct Assembly Upper		Appelez-nous	-
20	8206232A		Bulb   (Replaces: R0712016)			Immediately	$ 6.94
21	R0708245		Cover, Top Lamp		Appelez-nous	-
22	R0704546		Mounting Cushion		Appelez-nous	-
23	R0705952		Mounting Plate		Appelez-nous	-
24	R0707012		Fan/motor Assy		Appelez-nous	-
25	R0705964		Fan Motor/ Blade Assembly		Appelez-nous	-
26	R0711023		Thermostat		Appelez-nous	-
27	R0711018		Thermostat, Switch		Appelez-nous	-
28	WPW10126794		Magnetron   (Replaces: R0713502)				$ 296.33
28	Y00000000		See Note See Note Frame And Cavity Assembly -- (n/a)		Appelez-nous	-
29	R0711503		Capacitor .88 Mfd.		Appelez-nous	-
30	R0705996		Trim, Door Lower		Appelez-nous	-
31	R0705965		Bracket, Fan Motor		Appelez-nous	-
32	WP13091701		Rectifier   (Replaces: R0709506)				$ 33.29
33	R0705895		Barrier Hv Trans		Appelez-nous	-
34	R0705967		Air Guide		Appelez-nous	-
35	R0705881		Latch Body Lower		Appelez-nous	-
35	R0703882		Latch Upper Body		Appelez-nous	-
36	WP56001036		Switch, Primary   (Replaces: R0702548)				$ 78.58
37	R0702547		Switch, Door		Appelez-nous	-
38	R0702549		Switch, Secondary		Appelez-nous	-
39	R0705888		Cam		Appelez-nous	-
40	R0705887		Lever Hook		Appelez-nous	-
41	R0700053		Screw		Appelez-nous	-
42	R0702546		Switch, Monitor		Appelez-nous	-
43	R0705889		Spring Hook		Appelez-nous	-
44	R0710502		H V Transformer		Appelez-nous	-
45	R0705898		Bracket Bridge Right		Appelez-nous	-
46	R0703272		Cover, Side Duct		Appelez-nous	-
47	R0711504		Capacitor Motor		Appelez-nous	-
48	R0712516		Fuse Blk .250 Term, 40 Deg Tab		Appelez-nous	-
49	WPM0805102		Fuse 15 Amp   (Replaces: R0709507)				$ 22.31
50	R0710181		Probe		Appelez-nous	-
51	R0710293		Ass`y, Probe Socket		Appelez-nous	-
52	R0705899		Support, Rack		Appelez-nous	-
53	R0705971		Rack, Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
