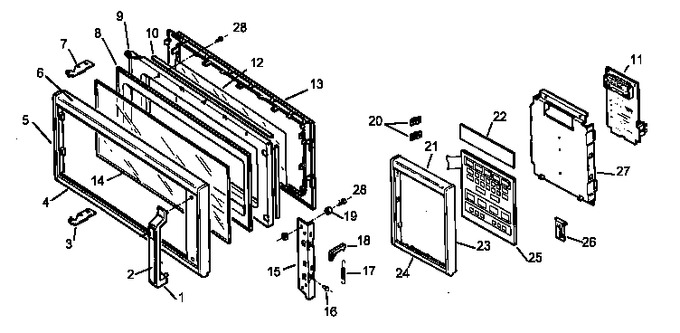

01 - Chassis Assy & Electrical Components


02 - Door/control Panel Assy


03 - Miscellaeous Information


04 - Outercase Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0705978		Handle (white)		Appelez-nous	-
2	R0705988		Trim, Handle		Appelez-nous	-
3	R0705954		Hinge Lower		Appelez-nous	-
4	R0705996		Trim, Door Lower		Appelez-nous	-
5	R0705992		Outer Door Frame		Appelez-nous	-
6	R0705994		Trim, Door, Upper		Appelez-nous	-
7	R0705990		Hinge, Upper		Appelez-nous	-
8	R0705984		Door Frame		Appelez-nous	-
9	R0705980		Doorliner & Choke		Appelez-nous	-
10	R0705985		Ferrite, Door		Appelez-nous	-
11	R0702019		Board, Pc		Appelez-nous	-
12	R0710188		Film Door		Appelez-nous	-
13	R0705982		Inner Door Frame		Appelez-nous	-
14	R0707553		Outer Glass Door		Appelez-nous	-
15	R0708243		Bracket, Key Door		Appelez-nous	-
16	R0701564		Pan, Latch Door		Appelez-nous	-
17	R0705989		Spring, Latch Door		Appelez-nous	-
17	R0701555		Cable Clamp		Appelez-nous	-
18	R0705986		Latch, Door Key		Appelez-nous	-
19	R0701563		Support, Ring		Appelez-nous	-
20	R0705948		Brkt Control Box		Appelez-nous	-
21	R0705975		Trim, Control Pnl Upper		Appelez-nous	-
22	R0707551		Crystal		Appelez-nous	-
23	R0705950		Control Panel		Appelez-nous	-
24	R0705973		Trim, Control Pnl, Lower		Appelez-nous	-
25	R0702008		Assy, Key Panel		Appelez-nous	-
26	R0705951		Hinge, Control Box		Appelez-nous	-
27	R0705976		Bracket, Control Panel		Appelez-nous	-
28	R0700081		Screw Special		Appelez-nous	-
