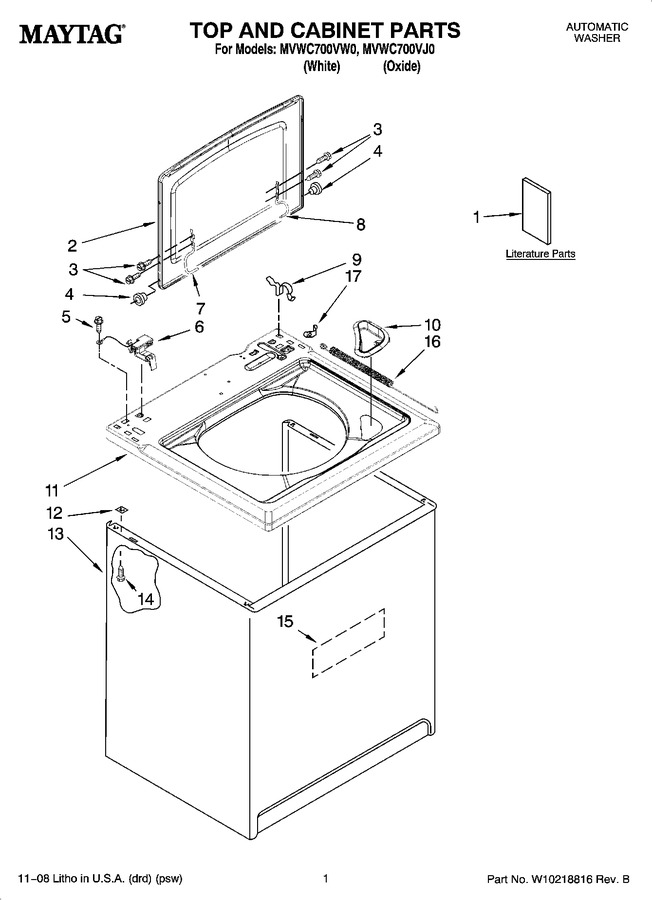

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10092805 | Energy Guide |
|
- | |||||
| 1 | W10111392 | Wiring Diagram |
|
- | |||||
| 1 | W10200331 | Installation Instructions (english/french) |
|
- | |||||
| 1 | W10200662 | Installation Instructions (spanish) |
|
- | |||||
| 1 | W10092796 | Use & Care Guide (english/french) |
|
- | |||||
| 1 | W10092797 | Use & Care Guide (spanish) |
|
- | |||||
| 1 | W10092800 | Feature Sheet (english/french) |
|
- | |||||
| 1 | W10092801 | Feature Sheet (spanish) |
|
- | |||||
| 2 | WPW10164516 | Lid Assembly (white) (Replaces: W10164516) |
|
$ 470.45 | |||||
| 2 | W10196543 | Lid Assembly (oxide) |
|
$ 159.86 | |||||
| 3 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: W10119828) |
|
Immediately | $ 7.55 | ||||
| 4 | 8319539 | Bearing, Lid Hinge (2) |
|
$ 5.51 | |||||
| 5 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 6 | WP8318084 | Switch, Lid (Replaces: 8318084) |
|
Immediately | $ 39.82 | ||||
| 7 | 8559336 | Hinge, Lid (l.h.) |
|
- | |||||
| 8 | W10202542 | Hinge, Lid (r.h.) |
|
- | |||||
| 9 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 8.19 | ||||
| 10 | W10196539 | Dispenser, Bleach (oxide) |
|
- | |||||
| 10 | WPW10192089 | Dispenser, Bleach (white) (Replaces: W10192089) |
|
Immediately | $ 8.36 | ||||
| 11 | W10212421 | Top (oxide) |
|
- | |||||
| 11 | W10203530 | Top (white) |
|
- | |||||
| 12 | WP62750 | Spacer, Cabinet To Top (4) (Replaces: 62750) |
|
Immediately | $ 8.07 | ||||
| 13 | W10207741 | Cabinet (oxide) |
|
- | |||||
| 13 | 63424 | Cabinet (white) |
|
$ 388.52 | |||||
| 14 | WP3390631 | Screw 10-16 X 3/8 (4) (Replaces: 3390631) |
|
$ 8.25 | |||||
| 15 | W11096159 | Cabinet - Damper, Sound (Replaces: W10177046) |
|
$ 28.73 | |||||
| 16 | W10208782 | Spring-extension, Glass Lid |
|
- | |||||
| 17 | 3350828 | Clip, Retainer |
|
$ 57.81 |
