SELECT A DIAGRAM

01 - Top And Cabinet Parts

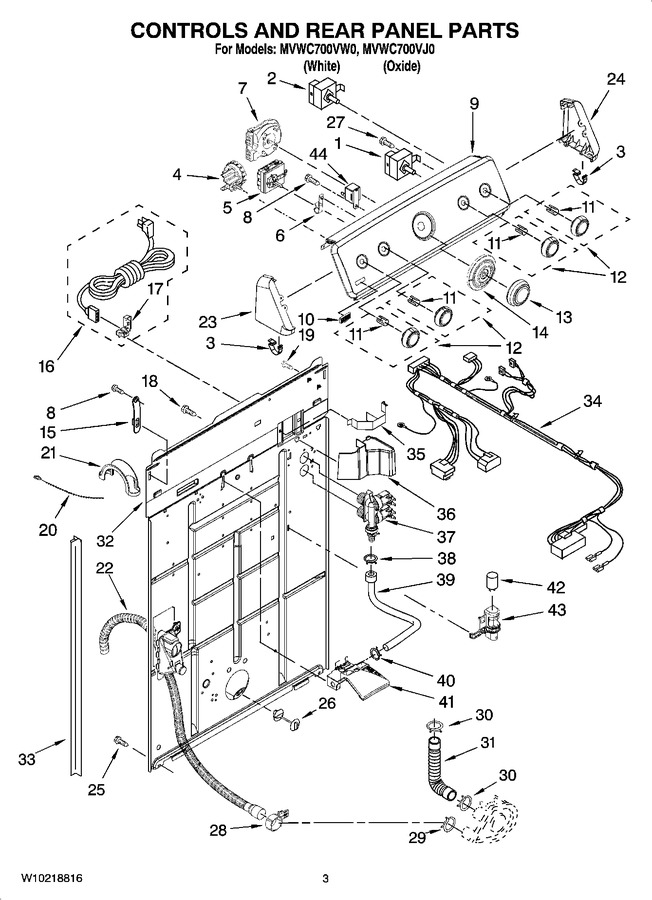

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10168262		Switch, Rotary   (Replaces: 3949187)				$ 136.25
2	WPW10168257		Switch, Rotary (includes Item 3)   (Replaces: 3949180)				$ 140.00
3	WP8312709		Clip-console (2)   (Replaces: 8312709)			Immediately	$ 16.35
4	W10337781		Switch, Water Level   (Replaces: 8577843)			Immediately	$ 179.75
5	W10202616		Switch, Water Temperature (atc)				$ 69.93
6	8317975		Retainer, Harness				$ 5.86
7	WPW10111389		Timer (motor Not A Service Part)   (Replaces: W10111389)			Immediately	$ 369.08
8	WP90767		Screw, 8/18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
9	W10089725		Panel, Control (incl Item 10) (white/silver)		Appelez-nous	-
9	W10089727		Panel, Control (incl Item 10) (oxide/gold)		Appelez-nous	-
10	W10101390		Badge Assembly (standard)		Appelez-nous	-
10	W10103431		Badge Assembly (signature)				$ 31.95
11	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 8.20
12	W10112582		Knob, Control (gold)				$ 87.97
12	WPW10180218		Knob, Control (grey/chrome)   (Replaces: W10180218)				$ 45.82
13	W10112579		Knob, Timer (gold)		Appelez-nous	-
13	WPW10180213		Knob, Timer (grey/chrome)   (Replaces: W10180213)				$ 44.31
14	W10180214		Dial, Timer (circular Brush)				$ 23.85
14	W10112581		Dial, Timer (gold)		Appelez-nous	-
15	WP8568314		Strap, Console   (Replaces: 8568314)				$ 8.17
16	W10820044		Cord, Power   (Replaces: 8578842)				$ 149.87
17	3952821		Strain Relief, Power Cord		Appelez-nous	-
18	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 8.58
19	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 7.30
20	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 8.30
21	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 8.37
22	WPW10189267		Drain Hose Assembly (includes Item 28)   (Replaces: W10189267)			Immediately	$ 70.58
23	W10101398		Cap, End (l.h.) (includes Item 3) (oxide)		Appelez-nous	-
23	WPW10193824		Cap, End (l.h.) (includes Item 3) (white)   (Replaces: W10193824)				$ 74.39
24	WPW10193821		Cap, End (r.h.) (includes Item 3) (white)   (Replaces: W10193821)				$ 74.72
24	W10101397		Cap, End (r.h.) (includes Item 3) (oxide)		Appelez-nous	-
25	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
26	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 19.85
27	3400073		Screw, Ground		Appelez-nous	-
28	8541668		Clamp, Hose				$ 22.32
29	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.81
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 8.58
31	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 28.99
32	W10194449		Panel, Rear		Appelez-nous	-
33	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 27.57
34	W10113814		Harness, Wiring (for Detail See Pages 9 & 10)				$ 114.97
35	8055003		Clip, Harness & Pressure Hose				$ 36.24
36	W10223717		Shield, Suds		Appelez-nous	-
37	WP3979346		Valve, Water Inlet & Thermistor Assy.   (Replaces: 3979347)			Immediately	$ 76.88
38	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.82
39	WPW10190501		Hose, Vacuum Break   (Replaces: W10190501)				$ 47.31
40	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.82
41	WPW10190514		Break, Vacuum   (Replaces: W10190514)				$ 97.90
42	WP8572717		Capacitor, Motor Start   (Replaces: 8572717)			Immediately	$ 80.14
43	8318046		Clip, Capacitor				$ 79.31
44	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05

    View Diagram in Separate Window       Print Part List
