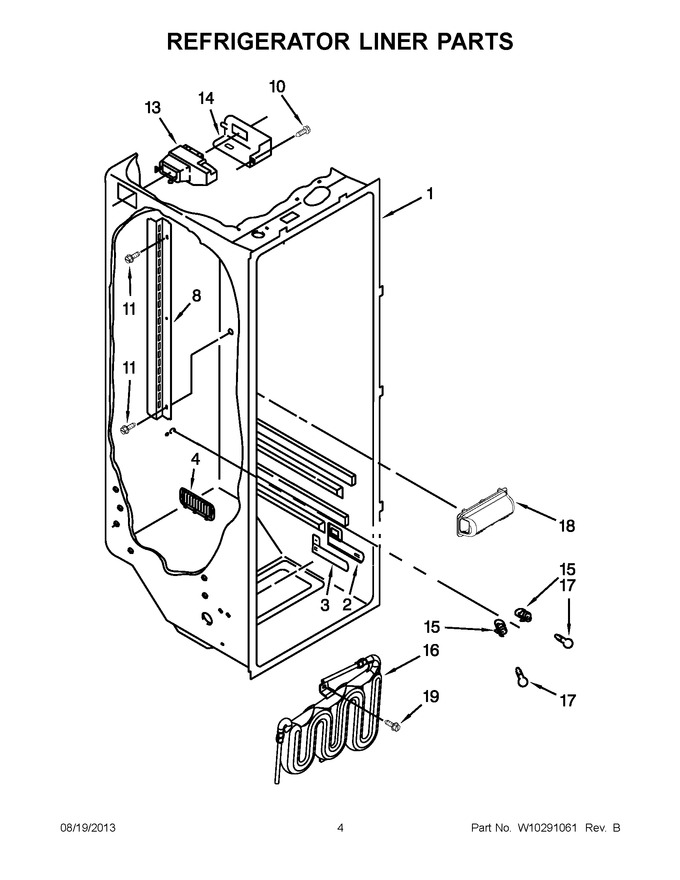

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide-control, Meat Pan				$ 75.15
4	2257741		Louver		Appelez-nous	-
8	2319866		Ladder, Shelf				$ 22.16
10	W10759522		Screw   (Replaces: W10004810)				$ 8.24
11	WP489478		Screw   (Replaces: W10001260)				$ 8.18
13	W10899382		Air Diffuser Assembly   (Replaces: W10128734)				$ 201.44
14	W10128735		Cover, Air Diffuser		Appelez-nous	-
15	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
16	WPW10276792		Reservoir, Water   (Replaces: 2307107)				$ 144.45
17	WPA3073101		Bulb, Light   (Replaces: 2326255)			Immediately	$ 12.72
18	W11239891		Assembly, Light Shield   (Replaces: W10242623)				$ 101.52
19	W10141518		Screw				$ 9.54
