SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts

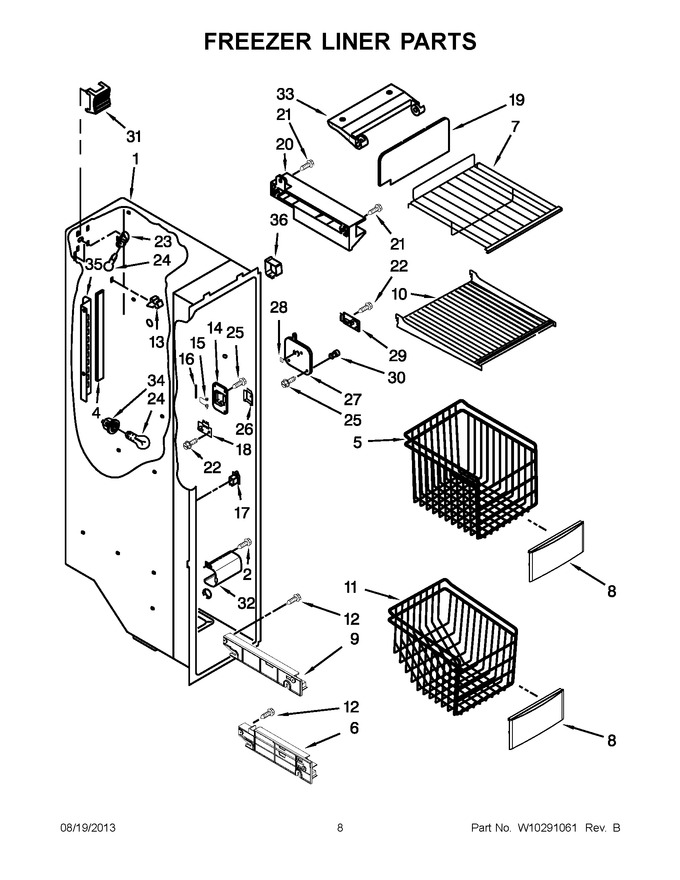

05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Control Box Parts


12 - Unit Parts


13 - Icemaker Parts


14 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10142289		Screw				$ 9.61
4	2198697		Gasket, Ladder				$ 36.87
5	2301139		Basket, Square		Appelez-nous	-
6	2301293		Track, Basket-dual (right Hand)		Appelez-nous	-
6	2301294		Track, Basket-dual (left Hand)		Appelez-nous	-
7	2211746		Shelf, Slide Out		Appelez-nous	-
8	2301134		Assembly, Front Basket				$ 30.78
9	2301289		Shelf Track (right Hand)				$ 86.80
9	2301290		Shelf Track (left Hand)				$ 134.88
10	2205837K		Shelf, Lower Cantilever				$ 42.67
11	2301140		Basket, Sloped		Appelez-nous	-
12	W10759522		Screw   (Replaces: W10004810)				$ 8.24
13	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 10.94
14	WP2198587		Cover, Emitter   (Replaces: 2198587)				$ 110.83
15	WP2198635		Spring, Door   (Replaces: 2198635)				$ 91.43
16	WP2198634		Pin, Door   (Replaces: 2198634)				$ 18.65
17	W11457217		Switch, Rocker Arm, Combination(freezer)   (Replaces: 1115373)				$ 40.09
18	W11629974		P.c. Board Emitter   (Replaces: W10193840)			Immediately	$ 421.12
19	WP2255720		Cover, Ice Maker   (Replaces: 2255720)				$ 78.56
20	2212321		Slide, Icemaker Mounting (right Hand)				$ 67.14
21	WP489478		Screw   (Replaces: W10001260)				$ 8.18
22	2006254		Screw   (Replaces: 489214)				$ 13.79
23	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
24	WPA3073101		Bulb, Light   (Replaces: 2326255)			Immediately	$ 12.72
25	WPW10142283		Screw (white)   (Replaces: W10142283)				$ 10.33
26	WP2198633		Flipper Shut Off   (Replaces: 2198633)			Immediately	$ 50.68
27	W10173569		Cover, Receiver				$ 66.93
28	2315398		Slide, Ice Maker Shut Off				$ 11.45
29	W11629974		Board, Receiver Circuit   (Replaces: W10193666)			Immediately	$ 421.12
30	WP2198643		Lens, Receiver   (Replaces: 2198643)				$ 8.59
31	2198589		Shield, Light		Appelez-nous	-
32	W11298978		Light Lens Cover Cover   (Replaces: 2212340)				$ 98.57
33	WP2198641		Bracket, Icemaker Cover   (Replaces: 2198641)				$ 7.55
34	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
35	2198609		Ladder (left Hand)				$ 42.40
35	2198610		Ladder (right Hand)				$ 63.20
36	2303234		Shield, Wiring		Appelez-nous	-
