SELECT A DIAGRAM

01 - Cover Sheet

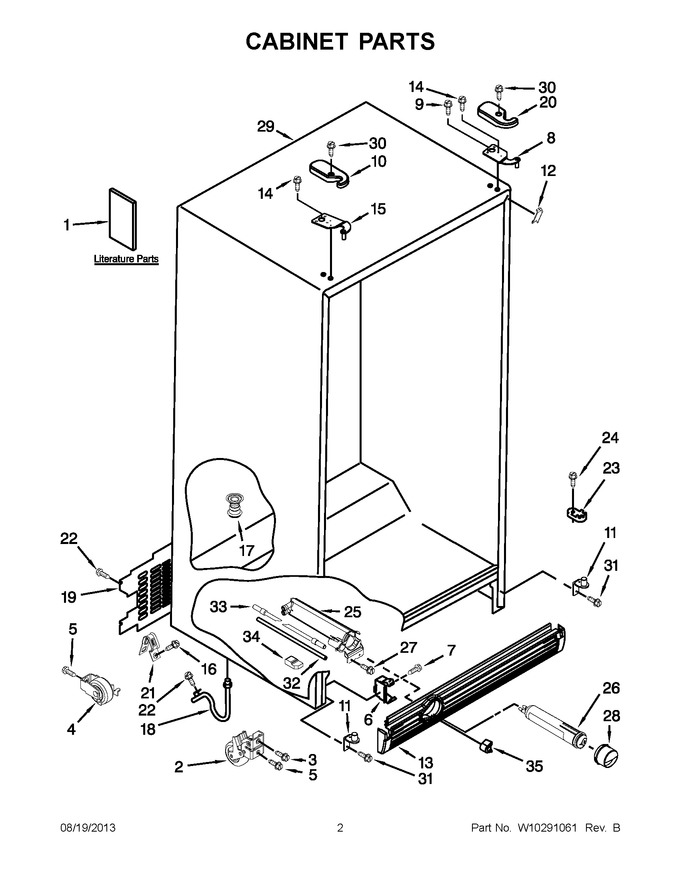

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Control Box Parts


12 - Unit Parts


13 - Icemaker Parts


14 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10184975		Energy Guide		Appelez-nous	-
1	2220407		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10206412		Use & Care Guide		Appelez-nous	-
1	W10238216		Service & Wiring Sheet		Appelez-nous	-
2	W10206334		Instruction Sheet, Door Removal		Appelez-nous	-
3	2174748		Roller, Front		Appelez-nous	-
4	W10850698		Screw   (Replaces: 3400517)				$ 14.42
5	WPW10250570		Roller, Rear   (Replaces: W10250570)				$ 42.18
6	WP489427		Screw   (Replaces: W10146358)				$ 7.84
7	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 8.11
8	WPW10141604		Screw   (Replaces: W10141604)				$ 8.85
9	WP2203771		Hinge, Top Right   (Replaces: 2203771)				$ 103.13
10	W10138584		Hinge Cover, Fc (grey)				$ 15.17
10	W10142288		Screw				$ 7.63
10	W10138581		Hinge Cover, Fc (white)		Appelez-nous	-
10	W10138582		Hinge Cover, Fc (black)				$ 34.30
11	W10138965		Hinge, Bottom				$ 93.91
12	2304846		Filler, Wrapper (white)		Appelez-nous	-
12	W10143043		Filler, Wrapper (grey)		Appelez-nous	-
12	2304848		Filler, Wrapper (black)		Appelez-nous	-
13	WPW10184890		Grille (midnight Grey)   (Replaces: W10184890)				$ 166.64
13	W10184886		Grille (white)				$ 67.61
13	WPW10184888		Grille (black)   (Replaces: W10184888)				$ 219.99
14	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
15	WP2203770		Hinge, Top Left   (Replaces: 2203770)				$ 100.30
16	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
17	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 53.45
18	W11512417		Extension, Drain Fitting   (Replaces: W10153550)				$ 36.53
19	WP2188755		Cover, Unit   (Replaces: 2188735)				$ 142.71
20	W10138577		Hinge Cover, Rc (black)				$ 34.45
20	W10138576		Hinge Cover, Rc (white)		Appelez-nous	-
20	W10138579		Hinge Cover, Rc (grey)				$ 35.68
21	549193		Clamp, Power Cord				$ 14.06
22	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
23	WPW10329686		Door Closer   (Replaces: 2155311)			Immediately	$ 5.90
24	WP489483		Screw   (Replaces: 489483)				$ 11.41
25	WPW10121138		Housing, Water Filter   (Replaces: 2260507)			Immediately	$ 112.91
26	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
27	WP489500		Screw   (Replaces: 489500)				$ 8.17
28	WP2260518MG		Cap, Water Filter (grey)   (Replaces: 2260502MG)				$ 58.83
28	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 34.67
28	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
29	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
30	WP8281227		Screw   (Replaces: 8281227)				$ 10.96
31	WP489497		Screw   (Replaces: W10142235)			Immediately	$ 29.09
32	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 121.32
33	W10212512		Tube, Filter Inlet		Appelez-nous	-
34	2260519		Block, Housing Support		Appelez-nous	-
35	2260503MG		Button, Water Filter (grey)				$ 28.36
35	2260503W		Button, Water Filter (white)			Immediately	$ 35.87
35	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 76.42

    View Diagram in Separate Window       Print Part List
