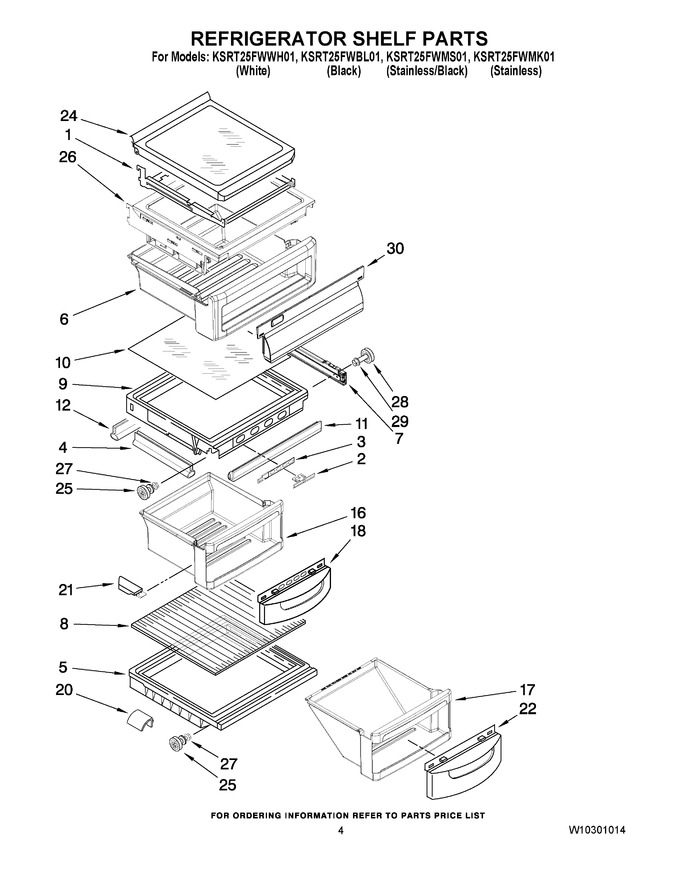

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2195975		Shelf Assembly,cantilever (3)				$ 84.01
2	2301025		Button, Humidity				$ 74.39
3	2301026		Slide, Humidity		Appelez-nous	-
4	2301117		Gasket, Side (2)				$ 143.37
5	2301568		Cover, Meat Pan (includes Items 13, 14, 15 & 20)		Appelez-nous	-
6	W11497323		Snack Pan (includes 30)   (Replaces: W10142718)				$ 223.66
7	2301549		Glide Assy (left Side)				$ 123.81
7	2301548		Glide Assy (right Side)				$ 224.83
8	2301010		Glass, Cover		Appelez-nous	-
9	2301567		Cover, Crisper (includes 2, 3, 4, 11, 12, 13, 14 & 19)				$ 237.90
10	2301009		Glass, Cover				$ 139.09
11	WP1125528		Gasket, Front   (Replaces: 2301116)				$ 153.99
12	2301115		Gasket, Rear		Appelez-nous	-
16	W10916292		Crisper Pan (includes 13,14, 18, 19 & 21)   (Replaces: 2301031)				$ 199.20
17	W10165656		Meat Pan (includes 13, 14, 19 & 22)				$ 58.64
18	2301001		Window, Crisper				$ 75.59
20	2301126		Deflector		Appelez-nous	-
21	2301017		Cap, Crisper Pan (left Side)		Appelez-nous	-
21	2301016		Cap, Crisper Pan (right Side)		Appelez-nous	-
22	2301227		Window, Meat Pan		Appelez-nous	-
24	WPW10141748		Shelf, Slide Out Assembly   (Replaces: W10141748)				$ 340.62
25	W11223328		Stud Assembly   (Replaces: W10173126)			Immediately	$ 14.07
26	W10141750		Shelf, Snack Pan				$ 206.22
27	WP3-24004-109		Screw   (Replaces: W10191954)				$ 8.05
28	W11527119		Stud Assembly   (Replaces: W10173127)		Appelez-nous	-
29	W10191952		Screw				$ 5.65
30	WP2179243		Trim, Snack Pan   (Replaces: 2179243)				$ 104.43
