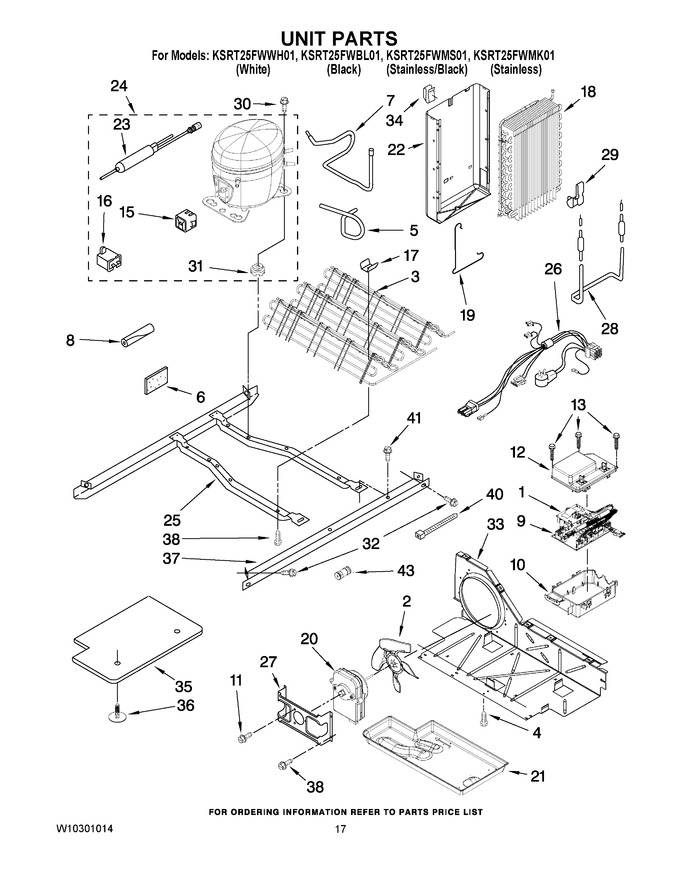

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10356039		Ctrl-elek, Gemini   (Replaces: W10120821)			Immediately	$ 359.09
2	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Condenser Assembly				$ 308.05
4	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
5	2325479		Tube, Process		Appelez-nous	-
6	W11553819		Insulation, Sound   (Replaces: 2169104)			Immediately	$ 14.07
7	2205765		Tube Suction				$ 36.04
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	WPW10210789		Ctrl-elek, Main   (Replaces: W10210789)				$ 344.39
10	2323186		Control, Box				$ 102.36
11	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
12	2323188		Control, Cover		Appelez-nous	-
13	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 11.06
15	WPW10189190		Start-device, Combination (start Relay And Overload)   (Replaces: W10197427)			Immediately	$ 131.29
16	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
17	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
18	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
19	2161324		Clamp		Appelez-nous	-
20	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 113.96
21	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
22	2217194		Heat Shield		Appelez-nous	-
23	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
24	W10139462		Compressor (also Order 876765 Tube Kit)   (Replaces: W10120457)				$ 636.50
25	2304904		Unit Mounting Frame		Appelez-nous	-
26	WPW10291106		Unit, Harness   (Replaces: W10291106)				$ 264.56
27	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
28	WP2323198		Heater, Defrost   (Replaces: 2323198)			Immediately	$ 90.70
29	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
30	876811		Screw   (Replaces: 489373)				$ 7.42
31	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
32	489340		Screw		Appelez-nous	-
33	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
34	2155547		Clip, Heat Shield		Appelez-nous	-
35	2304899		Unit Cover, Bottom		Appelez-nous	-
36	489396		Clip				$ 10.72
37	2305374		Unit Mounting Rail				$ 80.64
38	W11544659		Screw   (Replaces: 8281232)				$ 13.67
40	WPW10339879		Strap   (Replaces: 2172840)				$ 7.90
41	WP489427		Screw   (Replaces: W10146358)				$ 7.47
43	WPW10334458		Connector, Water Tube   (Replaces: W10271540)				$ 21.59
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.00 Oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
