SELECT A DIAGRAM

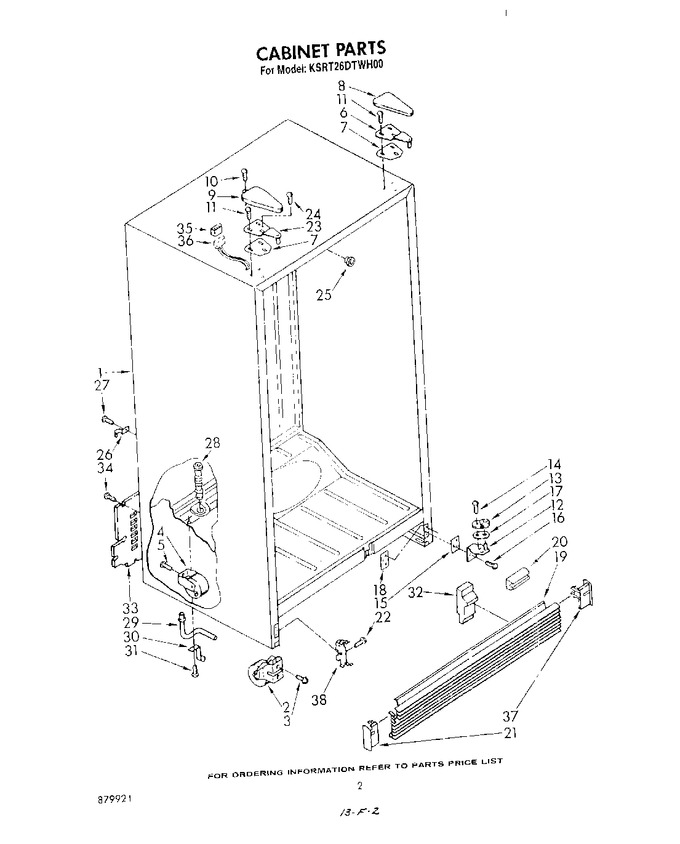

02 - Cabinet


03 - Liner


04 - Air Flow And Reservoir


05 - Dispenser Front


06 - Refrigerator Door


07 - Freezer Door


08 - Refrigerator Shelf , Lit/optional


09 - Freezer Shelf


10 - Unit


11 - Icemaker


12 - Air Flow And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	981127		Roller, Front		Appelez-nous	-
3	488681		Screw, 5/16-24 X 1		Appelez-nous	-
4	WPW10250570		Roller, Rear   (Replaces: 981122)				$ 42.18
5	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
6	842039		Hinge, Top		Appelez-nous	-
7	1111346		Shim, Hinge Top		Appelez-nous	-
8	1111349		Hinge Cover (platinum)		Appelez-nous	-
8	1111348		Hinge Cover (white)		Appelez-nous	-
8	1111355		Hinge Cover (almond)		Appelez-nous	-
8	1111350		Hinge Cover (toast)		Appelez-nous	-
9	1109211		Hinge Cover (toast)		Appelez-nous	-
9	1109209		Hinge Cover (white)		Appelez-nous	-
9	1109212		Hinge Cover (almond)		Appelez-nous	-
9	1109210		Hinge Cover (platinum)		Appelez-nous	-
10	488915		Screw, 6-32 X 1/2		Appelez-nous	-
11	488949		Screw (repair)		Appelez-nous	-
11	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 8.56
12	1115903		Hinge, Bottom (l.h.)		Appelez-nous	-
12	1115900		Hinge, Bottom R.h.		Appelez-nous	-
13	WPW10329686		Door Closer Lower Cam (2)   (Replaces: 1115901)			Immediately	$ 5.90
14	488913		Screw (repair)		Appelez-nous	-
14	WP486579		Screw, 8-32 X 1/4   (Replaces: 487983)				$ 7.89
15	836196		Shim, Hinge Bottom (2)		Appelez-nous	-
16	488949		Screw (repair)		Appelez-nous	-
16	00489194		Screw, 10-32 X 23/32   (Replaces: 489194)				$ 255.17
17	987179		Shim, Door Closer (2)		Appelez-nous	-
18	836162		Tap Plate, Bottom (2)		Appelez-nous	-
19	1107195		Exterior, Grille		Appelez-nous	-
20	1107614		Bumper, Grille (2)		Appelez-nous	-
21	1107444		Grille, End Cap (l.s.)		Appelez-nous	-
22	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
23	983608		Hinge, Top Freezer		Appelez-nous	-
24	WP488234		Screw, 8-32 X 5/32   (Replaces: 488889)				$ 7.08
25	839989		Grommet		Appelez-nous	-
26	836472		Tube, Clamp		Appelez-nous	-
27	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
28	982904		Drain Fitting, Liner		Appelez-nous	-
29	841646		Extension, Drain Fitting		Appelez-nous	-
30	841648		Cup, Drain Extension		Appelez-nous	-
31	488978		Screw, 8-15 X 3/8		Appelez-nous	-
32	1107271		Insert, Air Baffle		Appelez-nous	-
33	1101165		Cover, Unit Compartment		Appelez-nous	-
34	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
35	851648		Receptacle, Head		Appelez-nous	-
36	482553		Harness, Wiring (6`` Leads)		Appelez-nous	-
37	1107443		Grille, End Cap (r.s)		Appelez-nous	-
38	989068		Clip, Grille		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
