Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1117481 Refrigerator, Door Panel (white) Appelez-nous -
1 1117484 Refrigerator, Door Panel (platinum (also Order Item 19 When Replaceing Door)) Appelez-nous -
1 1117483 Refrigerator, Door Panel (toast) Appelez-nous -
1 1117485 Refrigerator, Door Panel (almond) Appelez-nous -
2 988402 Tap Plate Appelez-nous -
3 4318165 Door Closer, Upper Cam   (Replaces: 1115905) In-Stock Immediately $ 29.74

4 WP489069 Screw, 8 X 1/2   (Replaces: 488938) In-Stock Immediately $ 8.40

5 1115906 Bracket, Door Stop Appelez-nous -
6 1117322 Trim, Door Appelez-nous -
7 488930 Screw (repair) Appelez-nous -
7 488549 Screw, 8 X 5/8 (2) Appelez-nous -
8 509929 Cap, Hinge Sleeve Appelez-nous -
9 1107865 Retainer, Handle Appelez-nous -
10 982887 Retainer, Side Appelez-nous -
11 836121 Retainer, Top & Bottom Appelez-nous -
12 939341 Door, Gasket Magnetic Appelez-nous -
13 WP681414 Screw ((repair))   (Replaces: 488552) In-Stock Immediately $ 8.47

13 WP489069 Screw, No.7 X 1/2   (Replaces: 489101) In-Stock Immediately $ 8.40

14 1107833 Handle, Door Appelez-nous -
15 WP939101 Screw Anchor   (Replaces: 1114483) Special Order $ 7.88

16 WPW10141645 Screw, 8 X 1/2 (4)   (Replaces: 489084) Special Order $ 8.05

17 WP8281206 Screw (4)   (Replaces: 489028) Special Order $ 8.37

18 489188 Screw, 8-15 X 1-1/4 (10) Appelez-nous -
19 876029 Kit, Foam Slab Appelez-nous -
20 1107915 Nameplate Appelez-nous -
21 1117502 Insert, Handle Appelez-nous -
22 1117499 Trim, Push-in Top & Bottom Appelez-nous -
23 1107843 End Cap, Top Appelez-nous -
24 1107849 End Cap, Bottom Appelez-nous -
25 1117500 Trim, Push-in Side (2) Appelez-nous -
26 489112 Screw, 6-32 X 1/2 (8) Appelez-nous -
27 1107269 Interior Door Panel Appelez-nous -
33 1107296 Shelf Ladder Appelez-nous -
34 537095 Clip, Expansion Appelez-nous -
36 1107289 Door, Utility Appelez-nous -
39 1107310 Door Shelf, Appelez-nous -
40 1107284 Bin, Utility Appelez-nous -
43 WP1104787 Shim, Door Closer   (Replaces: 1104787) Special Order $ 7.96

44 1107352 Spacer, Shelf Ladder (10) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

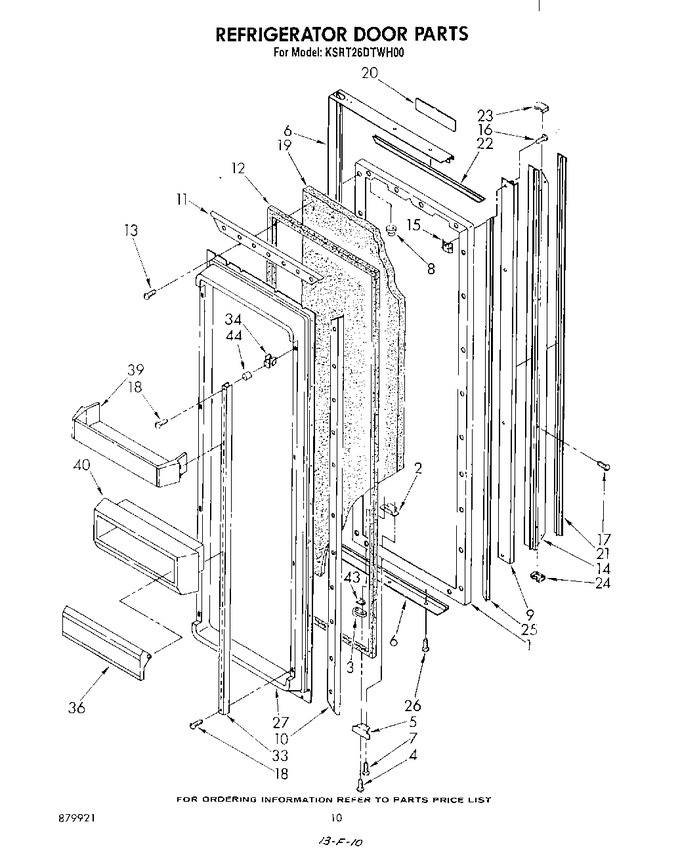

Diagram for KSRT26DTWH00
