Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67006873 Door Assy., Frz. Foam (wht) 10 Appelez-nous -
2 67006677 Closure, Door (blk) 10 Appelez-nous -
3 12395501B Bushing, Door (blk) 10 Appelez-nous -
4 67006672 Screw 10 Appelez-nous -
4 67006478 Stop, Door (wht) 10 Appelez-nous -
5 M0311605 Plug, Button (wht) 10 Appelez-nous -
6 67003972 Gasket, Frz. Door (wht) 10 Special Order $ 161.71

7 67004773 Bucket, Upr Fz Dr 10 Appelez-nous -
8 67004114 Bucket, Lwr Fz Dr 10 Appelez-nous -
9 67005629 Basket, Tilt Out 10 Appelez-nous -
10 67004566 Frame, Tilt Basket 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

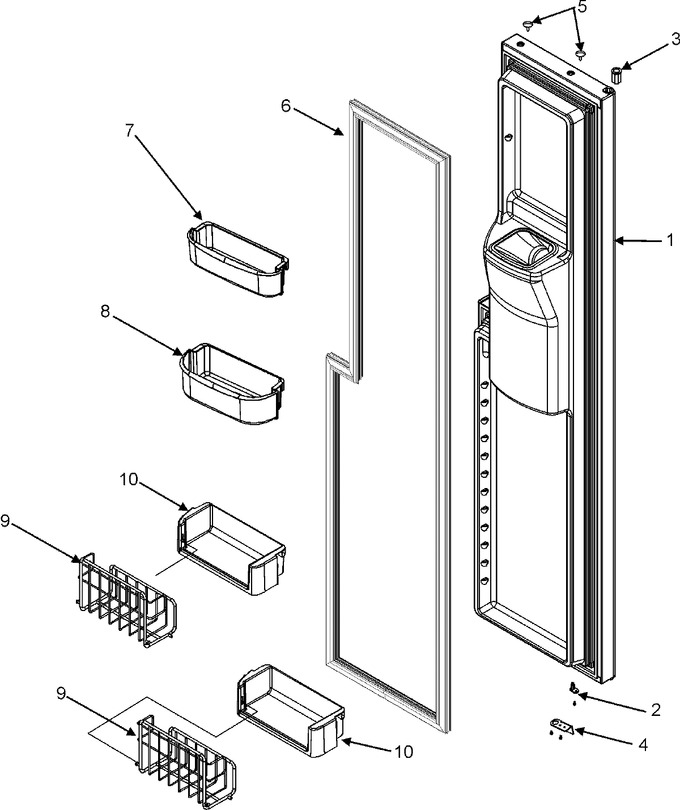

Diagram for MZD2666KEW
