SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor/cond Motor/rear Rollers


03 - Controls


04 - Crisper Assembly


05 - Evap Fan/crisp Light/water Filter


06 - Evaporator/front Rollers/water Tank


07 - Fountain


08 - Freezer Compartment


09 - Freezer Door


10 - Freezer Shelves


11 - Handles (mzd2666keb/w)


12 - Hinges & Toe Grille


13 - Ice Bucket Assy.


14 - Ice Maker


15 - Refrigerator Door


16 - Refrigerator Shelves


17 - Supplemental Information


18 - Wiring Information

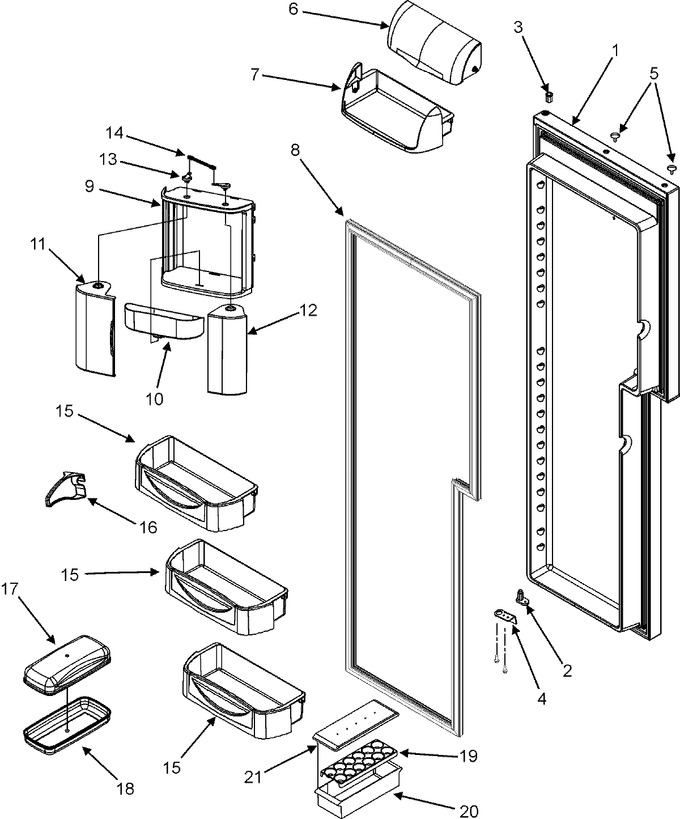

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006874		Door Assy., Ref. Foam (wht)	10	Appelez-nous	-
2	67006134		Closure, Door (blk)	10	Appelez-nous	-
3	67004976		Bushing, Door (blk)	10	Appelez-nous	-
4	67006672		Screw	10	Appelez-nous	-
4	67006517		Stop, Door (wht)	10	Appelez-nous	-
5	M0311605		Plug, Button (wht)	10	Appelez-nous	-
6	67007074		Door, Dairy	10	Appelez-nous	-
7	67005581		Tray, Dairy	10	Appelez-nous	-
8	67003970		Gasket, Ref. Door (wht)	10	Appelez-nous	-
9	67005582		Frame Chiller	10	Appelez-nous	-
10	67005584		Tray, Chiller	10	Appelez-nous	-
11	67006893		Door, Chiller (lt)	10	Appelez-nous	-
12	67005586		Door, Chiller (rt)	10	Appelez-nous	-
13	67002293		Linkage, Chiller	10			$ 11.76
14	67005583		Linkage, Center Chiller	10	Appelez-nous	-
15	67003923		Bucket Assy., Ref. Door	10			$ 35.73
16	67004564		Snugger, Door Shelf	10	Appelez-nous	-
17	67004405		Lid, Butter Tray	10	Appelez-nous	-
18	67004404		Tray, Butter	10	Appelez-nous	-
19	10436506		Tray, Egg	10			$ 8.28
20	10423131		Bin, Utility	10			$ 31.13
21	10436404		Lid, Utility	10			$ 60.85

    View Diagram in Separate Window       Print Part List
